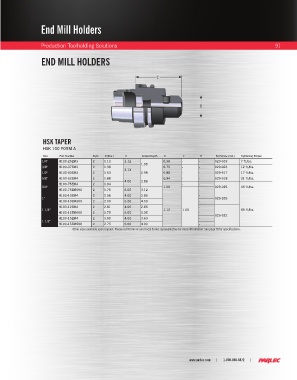

End Mill Holders
Production Toolholding Solutions 91
END MILL HOLDERS
C
B
HSK TAPER
HSK 100 FORM A
Size Part Number Style B (Dia.) C Socket Depth E F H Set Screw (Incl.) Tightening Torque
1/4" H100-25EM3 2 1.10 3.12 0.38 - - 029-018 7 ft./lbs.
1.98
3/8" H100-37EM3 2 1.38 0.75 - - 029-023 12 ft./lbs.
3.13
1/2" H100-50EM3 2 1.63 2.98 0.88 - - 029-917 17 ft./lbs.
5/8" H100-62EM4 2 1.88 0.94 - - 029-918 31 ft./lbs.
4.00 2.86
H100-75EM4 2 1.94 - -
3/4" 1.00 029-025 45 ft./lbs.
H100-75EM600 2 1.75 6.00 3.12 -
H100-10EM4 2 2.56 4.00 2.85 -
1" 029-926
H100-10EM600 2 2.00 6.00 4.50 -
H100-12EM4 2 2.81 4.00 2.85 -
1 1/4" 1.12 1.00 69 ft./lbs.
H100-12EM600 2 2.75 6.00 3.35 -
029-922
H100-15EM4 2 3.00 4.00 3.63 -
1 1/2"
H100-15EM600 2 2.75 6.00 4.00 -
Other sizes available upon request. Please call Parlec or your local Parlec representative for more information. See page 78 for specifications.
