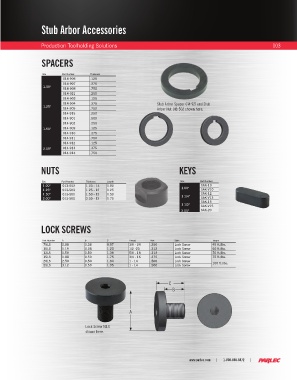

Stub Arbor Accessories

Production Toolholding Solutions 103

SPACERS

Size Part Number Thickness
014-906 .125
014-907 .375
1.00"
014-908 .750
014-921 .250
014-903 .125
014-904 .375 Stub Arbor Spacer 014-921 and Stub
1.25"
014-905 .750 Arbor Nut 013-502 shown here.
014-915 .250
014-901 .500
014-902 .250
1.50" 014-909 .125
014-910 .375
014-911 .750
014-912 .125
2.00" 014-913 .375
014-914 .750

NUTS KEYS

Size Part Number Thickness Length Size Part Number
1.00" 013-502 1.00 - 14 1.00 SAK-10
1.25" 013-503 1.25 - 12 1.25 1.00" SAK-V10
1.50" 013-501 1.50 - 12 1.50 1 1/4" SAK-12
2.00" 013-500 2.00 - 12 1.75 SAK-V12
SAK-15
1 1/2" SAK-V15
2.00" SAK-20

LOCK SCREWS

Part Number A B C Thread Hex Style Torque
75LS 0.88 0.38 0.97 3/8 - 24 .250 Lock Screw 45 ft./lbs.
10LS 1.19 0.28 1.20 1/2 -20 .312 Lock Screw 60 ft./lbs.
12LS 1.50 0.50 1.38 5/8 - 18 .312 Lock Screw 70 ft./lbs.
15LS 1.88 0.50 1.75 3/4 - 16 .375 Lock Screw 75 ft./lbs.
20LS 2.50 0.50 1.94 1 - 14 .500 Lock Screw
25LS 3.12 0.50 1.95 1 - 14 .500 Lock Screw 100 ft./lbs.

C
B

A

Lock Screw 10LS
shown here.
