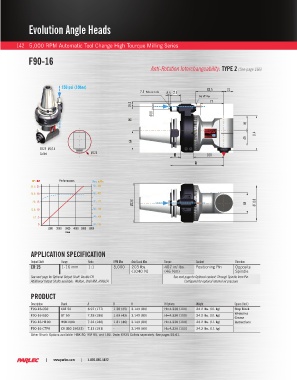

Evolution Angle Heads

142 5,000 RPM Automatic Tool Change High Tourque Milling Series

F90-16

Anti-Rotation Interchangeability: TYPE 2 (See page 166)

150 psi (10bar) 31
7.5 Release stroke 8,5 35 88,5
Cap 1/8” Pipe
16,3 77
Ø18
126
H
49

114
49
64
ER25 Ø1/16
Collet Ø126 B 100

A
Ø125

HP : KW Performances Nm : in/lbs
33.5 : 25 50 : 442
26.8 : 20 46 : 407
Ø128 68 Ø 118
20 : 15 42 : 372
13.4 : 10 38 : 336
6.7 : 5 34 : 300
0 30 : 265
1000 2000 3000 4000 5000 6000
Rpm

APPLICATION SPECIFICATION

Output Shaft Range Ratio RPM Max Axial Load Max Torque Coolant Direction
ER 25 1-16 mm 1:1 5,000 203 lbs. 407 in/ lbs. Positioning Pin Opposite
(1040 N) (46 Nm) Spindle
See next page for Optional Output Shaft: Double ER. See next page for Optional coolant: Through Spindle from Pin.
Additional Output Shafts available: Weldon, Shell Mill, HSK32A Configured for optional internal air pressure

PRODUCT
Description Shank A B H H Options Weight Spares (Incl.)
F90-16-C50 CAT 50 6.97 (177) 1.38 (35) 3.149 (80) H=4.330 (110) 24.2 lbs. (11 kg) Stop Block
Wrenches
F90-16-B50 BT 50 7.28 (185) 1.69 (43) 3.149 (80) H=4.330 (110) 24.2 lbs. (11 kg)
Grease
F90-16-H100 HSK100A 7.32 (186) 1.81 (46) 3.149 (80) H=4.330 (110) 24.2 lbs. (11 kg) Instructions
F90-16-CTP8 C8 (ISO 26623) 7.13 (181) - 3.149 (80) H=4.330 (110) 24.2 lbs. (11 kg)
Other Shank Options available: HSK 80, KM 80, and 100. Order ER25 Collets seperately. See pages 55-61.
