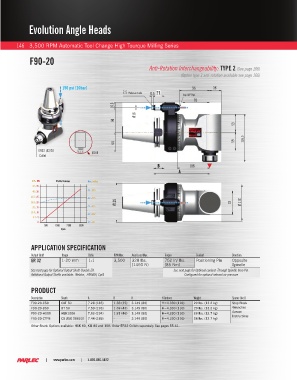

Page 148 - Parlec Catalog

Evolution Angle Heads

146 3,500 RPM Automatic Tool Change High Tourque Milling Series

F90-20

Anti-Rotation Interchangeability: TYPE 2 (See page 166)
(Option type 3 anti-rotation available see page 166)

150 psi (10bar) 96 38
7.5 Release stroke 8,5 35 Cap 1/8” Pipe

78
16,3
Ø168
Ø18
H
59

155,5
64 59
ER32 Ø2/20 Ø168
Collet
Ø168 B A 108

HP : KW Performances Nm : in/lbs
47 : 35
96 : 850
40 : 30
33.5 : 25 88 : 779
26.8 : 20 Ø128 78 Ø 118
20 : 15 76 : 673
13.4 : 10
68 : 602
6.7 : 5
0 60 : 531
500 1500 2500 3500
Rpm

APPLICATION SPECIFICATION

Output Shaft Range Ratio RPM Max Axial Load Max Torque Coolant Direction
ER 32 1-20 mm 1:1 3,500 328 lbs. 752 in/ lbs. Positioning Pin Opposite
(1460 N) (85 Nm) Spindle
See next page for Optional Output Shaft: Double ER. See next page for Optional coolant: Through Spindle from Pin.
Additional Output Shafts available: Weldon, HSK40A, Cpt4 Configured for optional internal air pressure

PRODUCT
Description Shank A B H H Options Weight Spares (Incl.)
F90-20-C50 CAT 50 7.28 (185) 1.38 (35) 3.149 (80) H=4.330 (110) 29 lbs. (13.2 kg) Stop Block
F90-20-B50 BT 50 7.59 (193) 1.69 (43) 3.149 (80) H=4.330 (110) 29 lbs. (13.2 kg) Wrenches
F90-20-H100 HSK100A 7.63 (194) 1.81 (46) 3.149 (80) H=4.330 (110) 28 lbs. (12.7 kg) Grease
Instructions
F90-20-CTP8 C8 (ISO 26623) 7.44 (189) - 3.149 (80) H=4.330 (110) 28 lbs. (12.7 kg)
Other Shank Options available: HSK 80, KM 80 and 100. Order ER32 Collets seperately. See pages 55-61.
