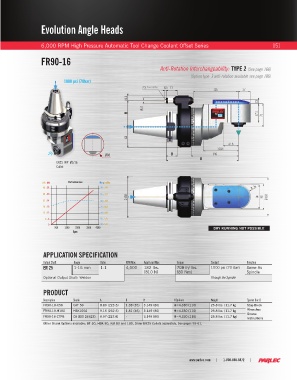

Evolution Angle Heads

6,000 RPM High Pressure Automatic Tool Change Coolant Offset Series 151

FR90-16

Anti-Rotation Interchangeability: TYPE 2 (See page 166)
(Option type 3 anti-rotation available see page 186)
1000 psi (70bar)

Ø98
ER25 WP Ø1/16
Collet

HP : KW Performances Nm : in/lbs
48 : 36 90 : 796
40 : 30 85 : 752
32 : 24 80 : 708
24 : 18 75 : 664
16 : 12 70 : 620
8 : 6 65 : 575
0 60 : 531
500 1500 2500 3500 4500 DRY RUNNING NOT POSSIBLE
Rpm

APPLICATION SPECIFICATION

Output Shaft Range Ratio RPM Max Axial Load Max Torque Coolant Direction
ER 25 1-16 mm 1:1 4,000 182 lbs. 708 in/ lbs. 1000 psi (70 Bar) Same As
(810 N) (80 Nm) Spindle
Optional Output Shaft: Weldon Through the Spindle

PRODUCT

Description Shank A B H H Options Weight Spares (Incl.)
FR90-10-C50 CAT 50 8.80 (223.5) 1.38 (35) 3.149 (80) H=4.330 (110) 25.8 lbs. (11.7 kg Stop Block
FR90-10-H100 HSK100A 9.15 (232.5) 1.81 (46) 3.149 (80) H=4.330 (110) 25.8 lbs. (11.7 kg Wrenches
Grease
FR90-16-CTP8 C8 (ISO 26623) 8.97 (227.8) - 3.149 (80) H=4.330 (110) 25.8 lbs. (11.7 kg)
Instructions
Other Shank Options available: BT 50, HSK 80, KM 80 and 100. Order ER25 Collets seperately. See pages 55-61.
