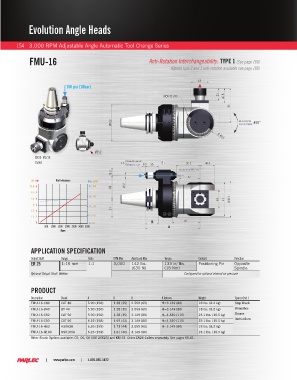

Page 156 - Parlec Catalog

Evolution Angle Heads

154 3,000 RPM Adjustable Angle Automatic Tool Change Series

FMU-16 Anti-Rotation Interchangeability: TYPE 1 (See page 166)

(Option type 2 and 3 anti-rotation available see page 166)

150 psi (10bar)

Ø152
ER25 Ø1/16
Collet

HP : KW Performances Nm : in/lbs
26.8 : 6 18 : 160
6.7 : 5
16 : 142
5.4 : 4
4 : 3
14 : 124
2.7 : 2
1.3 : 1 12 : 107
0 10 : 89
500 1000 1500 2000 2500 3000 3500
Rpm

APPLICATION SPECIFICATION

Output Shaft Range Ratio RPM Max Axial Load Max Torque Coolant Direction
ER 25 1-16 mm 1:1 3,000 142 lbs. 133 in/ lbs. Positioning Pin Opposite
(630 N) (15 Nm) Spindle
Optional Output Shaft: Weldon Configured for optional internal air pressure

PRODUCT
Description Shank A B H H Options Weight Spares (Incl.)
FMU-16-C40 CAT 40 5.90 (150) 1.38 (35) 2.559 (65) H=3.149 (80) 18 lbs. (8.2 kg) Stop Block
FMU-16-B40 BT 40 5.90 (150) 1.38 (35) 2.559 (65) H=3.149 (80) 18 lbs. (8.2 kg) Wrenches
FMU-16-C50 CAT 50 5.90 (150) 1.38 (35) 3.149 (80) H=4.330 (110) 23.1 lbs. (10.5 kg) Grease
Instructions
FMU-16-C50 CAT 50 6.22 (158) 1.69 (43) 3.149 (80) H=4.330 (110) 23.1 lbs. (10.5 kg)
FMU-16-H63 HSK63A 6.26 (159) 1.73 (44) 2.559 (65) H=3.149 (80) 18 lbs. (8.2 kg)
FMU-16-H100 HSK100A 6.26 (159) 1.81 (46) 3.149 (80) - 23.1 lbs. (10.5 kg)
Other Shank Options available: C5, C6, C8 (ISO 26623) and KM 63. Order ER25 Collets seperately. See pages 55-61.
