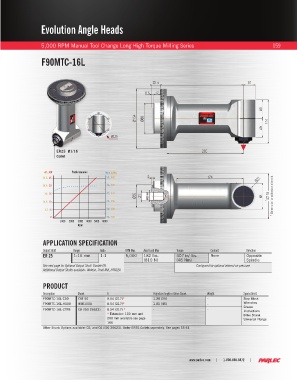

Evolution Angle Heads
5,000 RPM Manual Tool Change Long High Torque Milling Series 159
F90MTC-16L
Ø125
ER25 Ø1/16
Collet
HP : KW Performances Nm : in/lbs
33.5 : 25 50 : 442
26.8 : 20 46 : 407
20 : 15 42 : 372
13.4 : 10 38 : 336
6.7 : 5 34 : 300
0 30 : 265
1000 2000 3000 4000 5000 6000
Rpm
APPLICATION SPECIFICATION
Output Shaft Range Ratio RPM Max Axial Load Max Torque Coolant Direction
ER 25 1-16 mm 1:1 5,000 182 lbs. 407 in/ lbs. None Opposite
(810 N) (46 Nm) Spindle
See next page for Optional Output Shaft: Double ER. Configured for optional internal air pressure
Additional Output Shafts available: Weldon, Shell Mill, HSK32A
PRODUCT
Description Shank A Projection length of Drive Shank Weight Spares (Incl.)
F90MTC-16L-C50 CAT 50 8.54 (217)* 1.38 (35) - Stop Block
F90MTC-16L-H100 HSK100A 8.54 (217)* 1.81 (46) - Wrenches
Grease
F90MTC-16L-CTP8 C8 (ISO 26623) 8.54 (217) * - - Instructions
* Extension: 100 mm and Drive Shank
200 mm available see page Universal Flange
166
Other Shank Options available: C5, and C6 (ISO 26623). Order ER25 Collets seperately. See pages 55-61.
