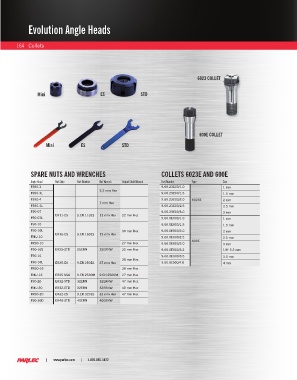

Page 166 - Parlec Catalog

Evolution Angle Heads

164 Collets

6023 COLLET

Mini ES STD

600E COLLET

Mini ES STD

SPARE NUTS AND WRENCHES COLLETS 6023E AND 600E

Angle Head Nut Style Part Number Nut Wrench Output Shaft Wrench Part Number Type Size
FS90-3 9.60.23E00/1.0 1 mm
5.5 mm Hex
FS90-3L 9.60.23E00/1.5 1.5 mm
FS90-4 9.60.23E00/2.0 6023E 2 mm
7 mm Hex
FS90-4L 9.60.23E00/2.5 2.5 mm
F90-07 9.60.23E00/3.0 3 mm
ER11-ES 9.ER.110ES 13 mm Hex 22 mm Hex
F90-07L 9.60.0E000/1.0 1 mm
F90-10 9.60.0E000/1.5 1.5 mm
F90-10L 30 mm Hex 9.60.0E000/2.0 2 mm
ER16-ES 9.ER.160ES 19 mm Hex
FMU-10 9.60.0E000/2.5 2.5 mm
600E
FR90-10 27 mm Hex 9.60.0E000/3.0 3 mm
F90-16S ER25-STD 25ERN 25ERNW 32 mm Hex 9.60.0E000/3.2 1/8" 3.2 mm
F90-16 9.60.0E000/3.5 3.5 mm
38 mm Hex
F90-16L ER25-ES 9.ER.250ES 27 mm Hex 9.60.0E000/4.0 4 mm
FR90-16 36 mm Hex
FMU-16 ER25 Mini 9.ER.2500M 9.CH.2500M 27 mm Hex
F90-20 ER32-STD 32ERN 32ERNW 47 mm Hex
FMU-20 ER32-STD 32ERN 32ERNW 40 mm Hex
FR90-20 ER32-ES 9.ER.320ES 32 mm Hex 47 mm Hex
F90-30D ER40-STD 40ERN 40ERNW
