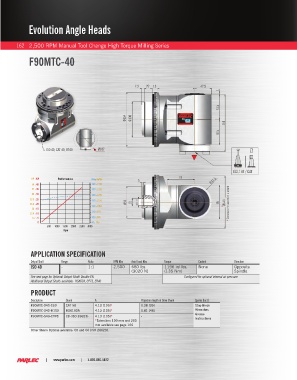

Evolution Angle Heads

162 2,500 RPM Manual Tool Change High Torque Milling Series

F90MTC-40

ISO 40, CAT 40, BT40 Ø187

HP : KW Performances Nm : in/lbs
54 : 40 160 : 1416
47 : 35 150 : 1328
40 : 30 140 : 1239
33.5 : 25 130 : 1150
26.8 : 20 120 : 1062
20 : 15
13.4 : 10 110 : 973
6.7 : 5 100 : 885
0 90 : 796
500 1000 1500 2000 2500 3000
Rpm

APPLICATION SPECIFICATION

Output Shaft Range Ratio RPM Max Axial Load Max Torque Coolant Direction
ISO 40 - 1:1 2,500 680 lbs. 1196 in/ lbs. None Opposite
(3020 N) (135 Nm) Spindle
See next page for Optional Output Shaft: Double ER. Configured for optional internal air pressure
Additional Output Shafts available: HSK63A, CPT5, ER40
PRODUCT

Description Shank A Projection length of Drive Shank Spares (Incl.)
F90MTC-S40-C50 CAT 50 4.13 (105)* 1.38 (35) Stop Block
F90MTC-S40-H100 HSK100A 4.13 (105)* 1.81 (46) Wrenches
Grease
F90MTC-S40-CTP8 C8 (ISO 26623) 4.13 (105)* - Instructions
*Extension: 100 mm and 200
mm available see page 166
Other Shank Options available: C5 and C6 (ISO 26623).
