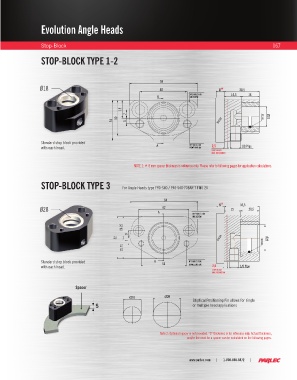

Evolution Angle Heads

Stop-Block 167

STOP-BLOCK TYPE 1-2

58
Ø18 40 8* 30,5

A N°2 HOLES FOR 14,5 16 16
M8 SCREW
15
7 Ø18
30 OR 123
34 5 SPACER

Standard stop block provided
with each head. A N°2 HOLES FOR 2,5 1/8 Pipe
DOWELLING Ø6
STOP BLOCK
MAX. REDUCTION
*
NOTE 1: 8 mm spacer thickness is reference only. Please refer to following pages for application calculations.

STOP-BLOCK TYPE 3 For Angle Heads type F90-S40 / F90-S40-70BAR 7 FMU 20

84
8* 35,5
Ø28 62 15 20,5
A
N°2 HOLES FOR
M8 SCREW
26.25

9
52 SPACER Ø28
7 OR 3112
25.75
Ø28
Standard stop block provided Ø18 A 56 N°2 HOLES FOR
with each head. DOWELLING Ø6 2,5 1/8 Pipe
STOP BLOCK
MAX. REDUCTION

Spacer
Ø18 Ø28
Elliptical Positioning Pin allows for single
S or multiple head applications

Note 2: Optional spacer is not provided. “S” thickness is for reference only. Actual thickness,
and/or the need for a spacer can be calculated on the following pages.
