Evolution Angle Heads

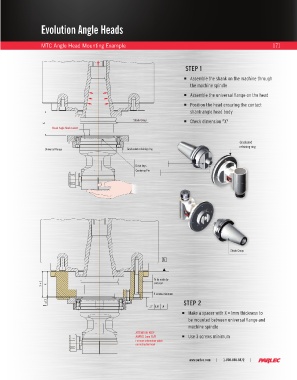

MTC Angle Head Mounting Example 171

STEP 1
ƒ Assemble the shank on the machine through
the machine spindle

ƒ Assemble the universal flange on the head

ƒ Position the head ensuring the contact
shank-angle head body
Shank Group ƒ Check dimension "X"
X
Shank-Angle Head contact

Graduated
retaining ring
Universal Flange Graduated retaining ring

Drive keys
Centering Pin

Shank Group
A

To be made by
X + 1 X end user

3 screws minimum
±0,1 STEP 2
1 0,01 A
ƒ Make a spacer with X + 1mm thickness to
be mounted between universal flange and
machine spindle
ATTENTION: KEEP
ALWAYS 1mm PLAY ƒ Use 3 screws minimum
For more information watch
our instruction book
