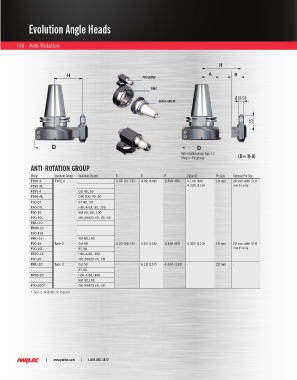

Evolution Angle Heads

166 Anti-Rotation

H

H PIN GROUP A B

RING
Ø18/28
SHANK GROUP

35

D D
Anti-rotation group type 1-2
(Ring + Pin group) (B= H-A)

ANTI-ROTATION GROUP
Model Standard Group Available Shanks A D H Option H Pin Size Optional Pin Size
FS90-3 TYPE 1 1.65 (41.75) 4.02 (102) 2.559 (65) 3.149 (80) 18 mm 28 mm with 110
FS90-3L 4.330 (110) mm H only
FS90-4 Cat 40, 50
FS90-4L DIN (SK) 40, 50
F90-07 BT 40, 50
F90-07L HSK A 63, 80, 100
F90-10 KM 63, 80, 100
F90-10L ISO 26623 C5, C6, C8
FMU-10
FR90-10
F90-16S
FMU-16 KM 80,100
F90-16 Type 2 Cat 50 2.23 (56.75) 5.04 (128) 3.149 (80) 4.330 (110) 18 mm 28 mm with 110
F90-16L BT 50 mm H only
FR90-16 HSK A 80, 100
F90-20 ISO 26623 C6, C8
FMU-20 Type 3 Cat 50 - 6.18 (157) 4.330 (110) - 28 mm -
- BT 50
FR90-20 HSK A 80, 100
- KM 80,100
F90-30D* ISO 26623 C6, C8
* Type 2 available on request
