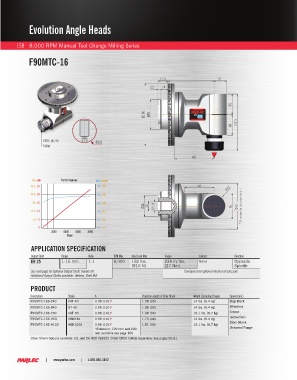

Evolution Angle Heads

158 8,000 RPM Manual Tool Change Milling Series

F90MTC-16

ER25 Ø1/16 Ø132
Collet

HP : KW Performances Nm : in/lbs
33.5 : 25 30 : 265
26.8 : 20 28 : 248

20 : 15 26 : 230
13.4 : 10 24 : 212
6.7 : 5 22 : 195
0 20 : 177
2000 4000 6000 8000
Rpm
APPLICATION SPECIFICATION

Output Shaft Range Ratio RPM Max Axial Load Max Torque Coolant Direction
ER 25 1-16 mm 1:1 8,000 182 lbs. 239 in/ lbs. None Opposite
(810 N) (27 Nm) Spindle
See next page for Optional Output Shaft: Double ER. Configured for optional internal air pressure
Additional Output Shafts available: Weldon, Shell Mill

PRODUCT

Description Shank A Projection length of Drive Shank Weight (Excluding Flange) Spares (Incl.)
F90MTC-16S-C40 CAT 40 3.98 (101)* 1.38 (35) 14 lbs. (6.4 kg) Stop Block
F90MTC-16S-B40 BT 40 3.98 (101)* 1.38 (35) 14 lbs. (6.4 kg) Wrenches
F90MTC-16S-C50 CAT 50 3.98 (101)* 1.38 (35) 19.1 lbs. (8.7 kg) Grease
Instructions
F90MTC-16S-H63 HSK63A 3.98 (101)* 1.73 (44) 14 lbs. (6.4 kg)
Drive Shank
F90MTC-16S-H100 HSK100A 3.98 (101)* 1.81 (46) 19.1 lbs. (8.7 kg)
*Extension: 100 mm and 200 Universal Flange
mm available see page 166
Other Shank Options available: C5, and C6 (ISO 26623). Order ER25 Collets seperately. See pages 55-61.
