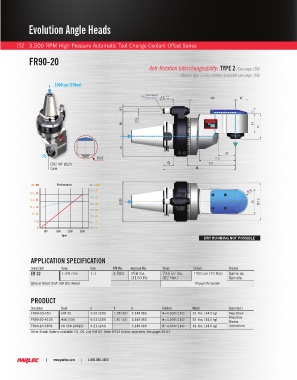

Page 154 - Parlec Catalog

Evolution Angle Heads

152 3,500 RPM High Pressure Automatic Tool Change Coolant Offset Series

FR90-20

Anti-Rotation Interchangeability: TYPE 2 (See page 166)
(Option type 3 anti-rotation available see page 166)
1000 psi (70bar)

Ø105
ER32 WP Ø2/20
Collet

HP : KW Performances Nm : in/lbs
90 : 850
40.2 : 30
85 : 752
32.2 : 24
80 : 708
24.1 : 18
75 : 664
16 : 12
70 : 620
8 : 6 65 : 575
0 60 : 531
500 1500 2500 3500
Rpm
DRY RUNNING NOT POSSIBLE

APPLICATION SPECIFICATION
Output Shaft Range Ratio RPM Max Axial Load Max Torque Coolant Direction
ER 32 1-20 mm 1:1 3,500 258 lbs. 726 in/ lbs. 1000 psi (70 Bar) Same as
(1150 N) (82 Nm) Spindle
Optional Output Shaft: HSK 50A, Weldon Through the Spindle

PRODUCT
Description Shank A B H H Options Weight Spares (Incl.)
FR90-20-C50 CAT 50 9.06 (230) 1.38 (35) 3.149 (80) H=4.330 (110) 32 lbs. (14.5 kg) Stop Block
Wrenches
FR90-20-H100 HSK100A 9.41 (239) 1.81 (46) 3.149 (80) H=4.330 (110) 32 lbs. (14.5 kg)
Grease
FR90-20-CTP8 C8 (ISO 26623) 9.21 (234) - 3.149 (80) H=4.330 (110) 32 lbs. (14.5 kg) Instructions
Other Shank Options available: C5, C6, and KM 63. Order ER32 Collets seperately. See pages 55-61.
