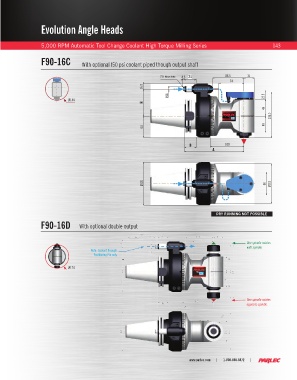

Evolution Angle Heads




                   5,000 RPM Automatic Tool Change Coolant High Torque Milling Series                                   143

                   F90-16C           With optional 150 psi coolant piped though output shaft



                                                                       7.5  Release stroke   8,5   35  88.5  31
                                                                                                     74
                                                               16.3
                                   Ø144
                                                                          Ø18                                       22.5
                               Ø144
                                                                   H
                                                                                                                     49
                                                                                                                       136.5

                                                                                                                     49
                                                               64


                                                                                      B            100
                                                                                                A







                                                               Ø128                                                  68  Ø118







                                                                                               DRY RUNNING NOT POSSIBLE
                   F90-16D          With optional double output




                                                                                                             One spindle rotates
                                                                                                             with spindle.
                                         Note: Coolant through
                                          Positioning Pin only

                               Ø174







                                                                                                             One spindle rotates
                                                                                                             opposite spindle.
