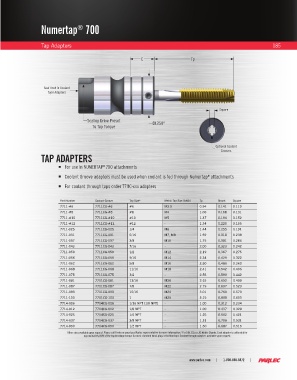

Numertap 700
®

Tap Adapters 185

C Tp

Seal Used in Coolant
Type Adapters

Square

Scallop Drive Preset Ø1.250"
To Tap Torque

Optional Coolant
Grooves
TAP ADAPTERS

ƒ For use in NUMERTAP 700 attachments
®
ƒ Coolant Groove adapters must be used when coolant is fed through Numertap attachments
®
ƒ For coolant through taps order 7711C-xxx adapters

Part Number Coolant Groove Tap Size* Metric Tap Size (ANSI) Tp Shank Square
7711-#6 7711CG-#6 #6 M3.5 0.94 0.141 0.110
7711-#8 7711CG-#8 #8 M4 1.00 0.168 0.131
7711-#10 7711CG-#10 #10 M5 1.37 0.194 0.152
7711-#12 7711CG-#12 #12 - 1.34 0.220 0.155
7711-025 7711CG-025 1/4 M6 1.44 0.255 0.191
7711-031 7711CG-031 5/16 M7, M8 1.59 0.318 0.238
7711-037 7711CG-037 3/8 M10 1.75 0.381 0.286
7711-043 7711CG-043 7/16 - 2.00 0.323 0.242
7711-050 7711CG-050 1/2 M12 2.19 0.367 0.275
7711-056 7711CG-056 9/16 M14 2.34 0.429 0.322
7711-062 7711CG-062 5/8 M16 2.50 0.480 0.360
7711-068 7711CG-068 11/16 M18 2.41 0.542 0.406
7711-075 7711CG-075 3/4 - 2.56 0.590 0.442
7711-081 7711CG-081 13/16 M20 2.53 0.652 0.489
7711-087 7711CG-087 7/8 M22 2.79 0.697 0.523
7711-093 7711CG-093 15/16 M24 3.01 0.760 0.570
7711-100 7711CG-100 1 M25 3.15 0.800 0.600
7714-006 7714CG-006 1/16 NPT (1/8 NPT) - 1.00 0.312 0.234
7714-012 7714CG-012 1/8 NPT - 1.00 0.437 0.328
7714-025 7714CG-025 1/4 NPT - 1.25 0.562 0.421
7714-037 7714CG-037 3/8 NPT - 1.31 0.700 0.531
7714-050 7714CG-050 1/2 NPT - 1.50 0.687 0.515
Other sizes available upon request. Please call Parlec or your local Parlec representative for more information. *For DIN, ISO, or JIS Metric Shanks. Each adapter is calibrated for
approximately 80% of the tap breakage torque for most standard hand, plug, or bottom taps. Coolant through adapters available upon request.
