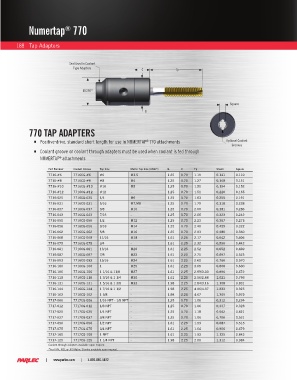

Page 190 - Parlec Catalog

Numertap 770
®

188 Tap Adapters

Seal Used in Coolant
Type Adapters C Tp

Ø1.250"

Square
B

770 TAP ADAPTERS

ƒ Positive-drive, standard short length for use in NUMERTAP 770 attachments Optional Coolant
®
Grooves
ƒ Coolant groove or coolant through adapters must be used when coolant is fed through
NUMERTAP attachments
®

Part Number Coolant Groove Tap Size Metric Tap Size (ANSI*) B C Tp Shank Square
7716-#6 7716CG-#6 #6 M3.5 1.25 0.70 1.19 0.141 0.110
7716-#8 7716CG-#8 #8 M4 1.25 0.70 1.27 0.168 0.131
7716-#10 7716CG-#10 #10 M5 1.25 0.70 1.51 0.194 0.152
7716-#12 7716CG-#12 #12 - 1.25 0.70 1.51 0.220 0.165
7716-025 7716CG-025 1/4 M6 1.25 0.70 1.63 0.255 0.191
7716-031 7716CG-031 5/16 M7,M8 1.25 0.70 1.79 0.318 0.238
7716-037 7716CG-037 3/8 M10 1.25 0.70 2.00 0.381 0.286
7716-043 7716CG-043 7/16 - 1.25 0.70 2.06 0.323 0.242
7716-050 7716CG-050 1/2 M12 1.25 0.70 2.23 0.367 0.275
7716-056 7716CG-056 9/16 M14 1.25 0.70 2.40 0.429 0.322
7716-062 7716CG-062 5/8 M16 1.25 0.70 2.03 0.480 0.360
7716-068 7716CG-068 11/16 M18 1.61 2.25 2.17 0.542 0.406
7716-075 7716CG-075 3/4 - 1.61 2.25 2.32 0.590 0.442
7716-081 7716CG-081 13/16 M20 1.61 2.25 2.52 0.652 0.489
7716-087 7716CG-087 7/8 M22 1.61 2.25 2.71 0.697 0.523
7716-093 7716CG-093 15/16 M24 1.61 2.25 2.60 0.760 0.570
7716-100 7716CG-100 1 M25 1.61 2.25 3.05 0.800 0.600
7716-106 7716CG-106 1 1/16 & 11/8 M27 1.61 2.25 2.99/3.30 0.896 0.672
7716-118 7716CG-118 1 3/16 & 1 1/4 M30 1.61 2.25 2.56/2.88 1.021 0.766
7716-131 7716CG-131 1 5/16 & 1 3/8 M33 1.98 2.25 2.84/3.16 1.108 0.831
7716-144 7716CG-144 1 7/16 & 1 1/2 - 1.98 2.25 4.06/4.37 1.233 0.925
7716-162 7716CG-162 1 5/8 - 1.98 2.25 4.67 1.305 0.979
7717-006 7717CG-006 1/16 NPT - 1/8 NPT - 1.25 0.70 1.06 0.312 0.234
7717-012 7717CG-012 1/8 NPT - 1.25 0.70 1.06 0.437 0.328
7717-025 7717CG-025 1/4 NPT - 1.25 0.70 1.18 0.562 0.421
7717-037 7717CG-037 3/8 NPT - 1.25 0.70 1.06 0.700 0.531
7717-050 7717CG-050 1/2 NPT - 1.61 2.25 1.53 0.687 0.515
7717-075 7717CG-075 3/4 NPT - 1.61 2.25 1.64 0.906 0.679
7717-100 7717CG-100 1 NPT - 1.61 2.25 1.93 1.125 0.843
7717-125 7717CG-125 1 1/4 NPT - 1.98 2.25 2.00 1.312 0.984
Coolant through adapters available upon request
*For DIN, ISO, or JIS Metric Shanks available upon request.
