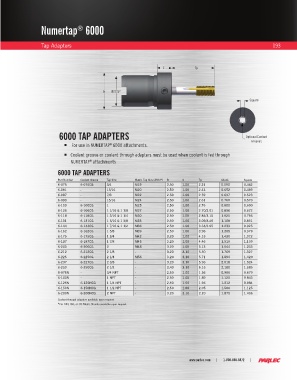

Page 195 - Parlec Catalog

Numertap 6000
®

Tap Adapters 193

C Tp

B Ø2.125"

Square

6000 TAP ADAPTERS Optional Coolant

Grooves
®
ƒ For use in NUMERTAP 6000 attachments.
ƒ Coolant groove or coolant through adapters must be used when coolant is fed through
NUMERTAP attachments
®
6000 TAP ADAPTERS
Part Number Coolant Groove Tap Size Metric Tap Size (ANSI*) B C Tp Shank Square
6-075 6-075CG 3/4 M19 2.50 1.00 2.21 0.590 0.442
6-081 - 13/16 M20 2.50 1.00 2.43 0.652 0.489
6-087 - 7/8 M22 2.50 1.00 2.59 0.697 0.523
6-093 - 15/16 M24 2.50 1.00 2.61 0.760 0.570
6-100 6-100CG 1 M25 2.50 1.00 2.76 0.800 0.600
6-106 6-106CG 1 1/16 & 1 1/8 M27 2.50 1.00 2.70/3.01 0.896 0.672
6-118 6-118CG 1 3/16 & 1 1/4 M30 2.50 1.00 2.84/3.15 1.021 0.766
6-131 6-131CG 1 5/16 & 1 3/8 M33 2.50 1.00 3.09/3.40 1.108 0.831
6-144 6-144CG 1 7/16 & 1 1/2 M36 2.50 1.00 3.34/3.65 1.233 0.925
6-162 6-162CG 1 5/8 M39 2.50 1.00 3.96 1.305 0.979
6-175 6-175CG 1 3/4 M42 3.20 1.00 4.15 1.430 1.072
6-187 6-187CG 1 7/8 M45 3.20 1.00 4.46 1.519 1.139
6-200 6-200CG 2 M48 3.20 1.00 5.13 1.644 1.233
6-212 6-212CG 2 1/8 - 3.20 3.10 5.50 1.769 1.327
6-225 6-225CG 2 1/4 M56 3.20 3.10 5.71 1.894 1.420
6-237 6-237CG 2 3/8 - 3.20 3.10 5.96 2.018 1.524
6-250 6-250CG 2 1/2 - 3.40 3.10 6.15 2.100 1.585
6-075N - 3/4 NPT - 2.50 1.00 1.56 0.906 0.679
6-100N - 1 NPT - 2.50 1.00 1.89 1.125 0.843
6-125N 6-125NCG 1 1/4 NPT - 2.50 1.00 1.96 1.312 0.984
6-150N 6-150NCG 1 1/2 NPT - 2.50 1.00 2.05 1.500 1.125
6-200N 6-200NCG 2 NPT - 3.20 3.10 2.20 1.875 1.406
Coolant through adapters available upon request
*For DIN, ISO, or JIS Metric Shanks available upon request.
