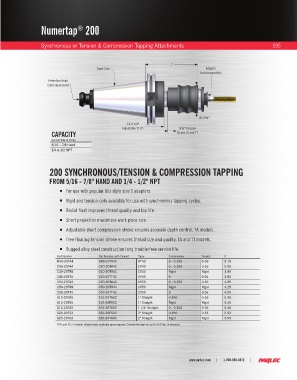

Page 197 - Parlec Catalog

Numertap 200
®

Synchronous or Tension & Compression Tapping Attachments 195

C
Taper Size Adapter
(sold separately)
Retention Knob
(sold separately)

Ø3.290"
TA 0- 1/4"
Adjustable TT 0"- 9/16" Tension
CAPACITY Stroke TA and TT

Synchr/Tens & Comp
5/16 – 7/8 Hand
1/4 & 1/2 NPT

200 SYNCHRONOUS/TENSION & COMPRESSION TAPPING

FROM 5/16 - 7/8" HAND AND 1/4 - 1/2" NPT

ƒ For use with popular Bilz style size 2 adapters.

ƒ Rigid and tension-only available for use with synchronous tapping cycles.
ƒ Radial float improves thread quality and tap life.

ƒ Short projection maximizes work piece size.

ƒ Adjustable short compression stroke ensures accurate depth control, TA models .
ƒ Free-floating tension stroke ensures thread size and quality, TA and TT models.

ƒ Rugged alloy steel construction long trouble-free service life.
Part Number Part Number with Coolant Taper Compression Tension C
B40-20TA4 B40-20TA4C BT40 0 - 0.250 0.56 5.19
C40-20TA4 C40-20TA4C CV40 0 - 0.250 0.56 5.06
C40-20TR4 C40-20TR4C CV40 Rigid Rigid 3.86
C40-20TT4 C40-20TT4C CV40 0 0.56 3.86
C50-20TA4 C50-20TA4C CV50 0 - 0.250 0.56 4.25
C50-20TR4 C50-20TR4C CV50 Rigid Rigid 4.25
C50-20TT4 C50-20TT4C CV50 0 0.56 4.25
S10-20TA5 S10-20TA5C 1" Straight 0.250 0.56 5.46
S10-20FS5 S10-20FS5C 1" Straight Rigid Rigid 5.46
S12-20TA5 S12-20TA5C 1 1/4" Straight 0 - 0.250 0.56 5.46
S20-20FS3 S20-20FS3C 2" Straight 0.250 0.56 5.93
S20-20TA3 S20-20TA3C 2" Straight Rigid Rigid 5.93
PC6 and PC7 modular attachments available upon request. Coolant-through for up to 250 lbs. of pressure.
