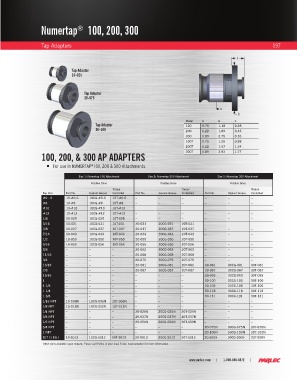

Page 199 - Parlec Catalog

Numertap 100, 200, 300
®

Tap Adapters 197

C

Tap Adapter
10-025

Tap Adapter
20-075

A
B
Model A B C
Tap Adapter 100 0.75 1.18 0.28
30-100 200 1.22 1.89 0.43
300 1.89 2.75 0.55
100T 0.75 1.26 0.98
200T 1.22 1.97 1.34
100, 200, & 300 AP ADAPTERS 300T 1.89 2.83 1.77

ƒ For use in NUMERTAP 100, 200 & 300 Attachments.
®

Size 1: Numertap 100 Attachment Size 2: Numertap 200 Attachment Size 3: Numertap 300 Attachment
Positive Drive Positive Drive Positive Drive
Torque Torque Torque
Tap Size Part No. Coolant Groove Controlled Part No. Coolant Groove Controlled Part No. Coolant Groove Controlled
#0 - 6 10-#0-6 10CG-#0-6 10T-#0-6 – – – – – –
#8 10-#8 10CG-#8 10T-#8 – – – – – –
#10 10-#10 10CG-#10 10T-#10 – – – – – –
#12 10-#12 10CG-#12 10T-#12 – – – – – –
1/4 10-025 10CG-025 10T-025 – – – – – –
5/16 10-031 10CG-031 10T-031 20-031 20CG-031 20T-031 – – –
3/8 10-037 10CG-037 10T-037 20-037 20CG-037 20T-037 – – –
7/16 10-043 10CG-043 10T-043 20-043 20CG-043 20T-043 – – –
1/2 10-050 10CG-050 10T-050 20-050 20CG-050 20T-050 – – –
9/16 10-056 10CG-056 10T-056 20-056 20CG-056 20T-056 – – –
5/8 – – – 20-062 20CG-062 20T-062 – – –
11/16 – – – 20-068 20CG-068 20T-068 – – –
3/4 – – – 20-075 20CG-075 20T-075 – – –
13/16 – – – 20-081 20CG-081 20T-081 30-081 30CG-081 30T-081
7/8 – – – 20-087 20CG-087 20T-087 30-087 30CG-087 30T-087
15/16 – – – – – – 30-093 30CG-093 30T-093
1 – – – – – – 30-100 30CG-100 30T-100
1 1/8 – – – – – – 30-106 30CG-106 30T-106
1 1/4 – – – – – – 30-118 30CG-118 30T-118
1 3/8 – – – – – – 30-131 30CG-131 30T-131
1/16 NPT 10-006N 10CG-006N 10T-006N – – – – – –
1/8 NPT 10-012N 10CG-012N 10T-012N – – – – – –
1/4 NPT – – – 20-025N 20CG-025N 20T-025N – – –
3/8 NPT – – – 20-037N 20CG-037N 20T-037N – – –
1/2 NPT – – – 20-050N 20CG-050N 20T-050N – – –
3/4 NPT – – – – – – 30-075N 30CG-075N 30T-075N
1 NPT – – – – – – 30-100N 30CG-100N 30T-100N
SET (1 EA.) 10-S012 10CG-S012 10T-S012 20-S013 20CG-S013 20T-S013 30-S009 30CG-S009 30T-S009
Other sizes available upon request. Please call Parlec or your local Parlec representative for more information.
