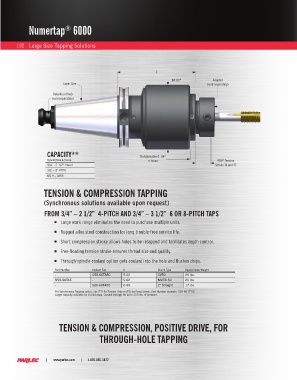

Numertap 6000
®

192 Large Size Tapping Solutions

C
Ø4.120" Adapter
Taper Size (sold separately)

Retention Knob
(sold separately)

CAPACITY** TA Adjustable 0- 1/4"
Synchr/Tens & Comp TT None 9/16" Tension
3/4 – 2 1/2” Hand Stroke TA and TT
1/2 – 2” PIPE
M19 – M56

TENSION & COMPRESSION TAPPING

(Synchronous solutions available upon request)

FROM 3/4” – 2 1/2” 4-PITCH AND 3/4” – 3 1/2” 6 OR 8-PITCH TAPS

ƒ Large work range eliminates the need to purchase multiple units.
ƒ Rugged alloy steel construction for long trouble-free service life.

ƒ Short compression stroke allows holes to be retapped and facilitates depth control.

ƒ Free-floating tension stroke ensures thread size and quality.
ƒ Through-spindle coolant option gets coolant into the hole and flushes chips.

Part Number Coolant Fed C Shank Type Approximate Weight
- C50-60TA5C 5.62 CV50 21 lbs.
N50-60TA5 - 5.62 NMTB 50 21 lbs
- S20-60TA5C 6.00 2” Straight 17 lbs.
For Synchronous Tapping cycles, use (TT) for Tension-Only or (FS) for Fixed Shank, Part Number example: C50-60 (TT)5.
Larger capacity available for 8-pitch taps. Coolant-through for up to 250 lbs. of pressure.

TENSION & COMPRESSION, POSITIVE DRIVE, FOR

THROUGH-HOLE TAPPING
