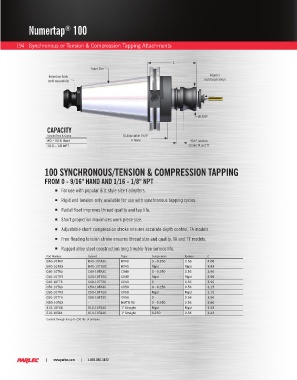

P. 196
Numertap 100
®
194 Synchronous or Tension & Compression Tapping Attachments
C
Taper Size
Retention Knob Adapter
(sold separately) (sold separately)
Ø1.390"
CAPACITY
Synchr/Tens & Comp TA Adjustable 0-1/4"
#0 – 9/16 Hand TT None 9/16" Tension
1/16 – 1/8 NPT Stroke TA and TT
100 SYNCHRONOUS/TENSION & COMPRESSION TAPPING
FROM 0 - 9/16" HAND AND 1/16 - 1/8" NPT
For use with popular Bilz style size 1 adapters.
Rigid and tension-only available for use with synchronous tapping cycles.
Radial float improves thread quality and tap life.
Short projection maximizes work piece size.
Adjustable short compression stroke ensures accurate depth control, TA models .
Free-floating tension stroke ensures thread size and quality, TA and TT models.
Rugged alloy steel construction long trouble-free service life.
Part Number Coolant Taper Compression Tension C
B40-10TA3 B40-10TA3C BT40 0 - 0.250 0.56 4.08
B40-10TR3 B40-10TR3C BT40 Rigid Rigid 3.83
C40-10TA3 C40-10TA3C CV40 0 - 0.250 0.56 3.96
C40-10TR3 C40-10TR3C CV40 Rigid Rigid 3.96
C40-10TT3 C40-10TT3C CV40 0 0.56 3.96
C50-10TA3 C50-10TA3C CV50 0 - 0.250 0.56 3.15
C50-10TR3 C50-10TR3C CV50 Rigid Rigid 3.15
C50-10TT3 C50-10TT3C CV50 0 0.56 3.96
N50-10TA3 - NMTB 50 0 - 0.250 0.56 3.96
S10-10FS4 S10-10FS4C 1" Straight Rigid Rigid 4.43
S10-10TA4 S10-10TA4C 1" Straight 0.250 0.56 4.43
Coolant-through for up to 250 lbs. of pressure.
