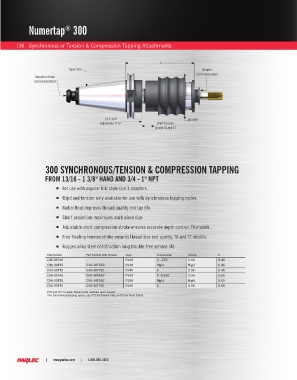

Page 198 - Parlec Catalog

Numertap 300
®

196 Synchronous or Tension & Compression Tapping Attachments

C
Taper Size Adapter
(sold separately)
Retention Knob
(sold separately)

TA 0- 1/4" Ø3.290"
Adjustable TT 0"- 9/16" Tension
Stroke TA and TT

300 SYNCHRONOUS/TENSION & COMPRESSION TAPPING

FROM 13/16 - 1 3/8" HAND AND 3/4 - 1" NPT
ƒ For use with popular Bilz style size 3 adapters.

ƒ Rigid and tension-only available for use with synchronous tapping cycles.

ƒ Radial float improves thread quality and tap life.
ƒ Short projection maximizes work piece size.

ƒ Adjustable short compression stroke ensures accurate depth control, TA models .

ƒ Free-floating tension stroke ensures thread size and quality, TA and TT models.
ƒ Rugged alloy steel construction long trouble-free service life.

Part Number Part Number with Coolant Taper Compression Tension C
C40-30TA5 - CV40 0 -.250 0.56 6.46
C40-30FS5 C40-30FS5C CV40 Rigid Rigid 6.46
C40-30TT5 C40-30TT5C CV40 0 0.56 6.46
C50-30TA5 C50-30TA5C CV50 0 -0.250 0.56 5.65
C50-30FS5 C50-30FS5C CV50 Rigid Rigid 5.65
C50-30TT5 C50-30TT5C CV50 0 0.56 5.65
PC6 and PC7 modular attachments available upon request.
*For Synchronous tapping cycles, use (TT) for Tension Only, or (FS) for Fixed Shank.
