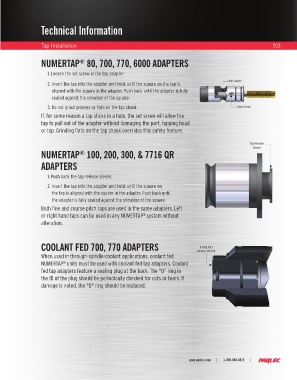

Technical Information

Tap Installation 203

NUMERTAP 80, 700, 770, 6000 ADAPTERS
®
1. Loosen the set screw in the tap adapter.

Align Square
2. Insert the tap into the adapter and twist until the square on the tap is
aligned with the square in the adapter. Push back until the adapter is fully
seated against the shoulder of the square.
3. Do not grind grooves or flats on the tap shank Clamp Screw
If, for some reason a tap sticks in a hole, the set screw will allow the
tap to pull out of the adapter without damaging the part, tapping head
or tap. Grinding flats on the tap shank overrides this safety feature.

Tap Release
Sleeve
NUMERTAP 100, 200, 300, & 7716 QR
®
ADAPTERS

1. Push back the tap release sleeve.

2. Insert the tap into the adapter and twist until the square on
the tap is aligned with the square in the adapter. Push back until
the adapter is fully seated against the shoulder of the square.
Both fine and course pitch taps are used in the same adapters. Left
or right hand taps can be used in any NUMERTAP system without
®
alteration.

COOLANT FED 700, 770 ADAPTERS Number 105-100
O-Ring Part
When used in through-spindle-coolant applications, coolant fed
NUMERTAP units must be used with coolant fed tap adapters. Coolant
®
fed tap adapters feature a sealing plug at the back. The "O" ring in
the ID of the plug should be periodically checked for cuts or tears. If
damage is noted, the "O" ring should be replaced.
