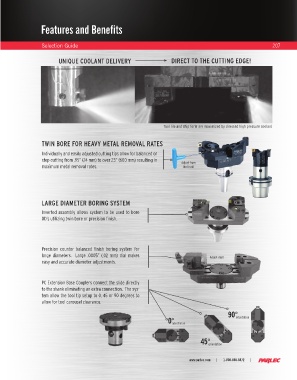

Features and Benefits

Selection Guide 207

UNIQUE COOLANT DELIVERY DIRECT TO THE CUTTING EDGE!

Tool life and chip form are maximized by directed high pressure coolant

TWIN BORE FOR HEAVY METAL REMOVAL RATES

Individually and easily adjusted cutting tips allow for balanced or
step cutting from .95” (24 mm) to over 23” (600 mm) resulting in Adjust from
maximum metal removal rates. the front!

LARGE DIAMETER BORING SYSTEM

Inverted assembly allows system to be used to bore
OD’s utilizing twin bore or precision finish.

Precision counter balanced finish boring system for
large diameters. Large .0005” (.02 mm) dial makes Adjust dial!
easy and accurate diameter adjustments.

PC Extension Base Couplers connect the slide directly
to the shank eliminating an extra connection. The sys-
tem allow the tool tip setup to 0, 45 or 90 degrees to
allow for tool carousel clearance.

90°
0° orientation
orientation

45° orientation
