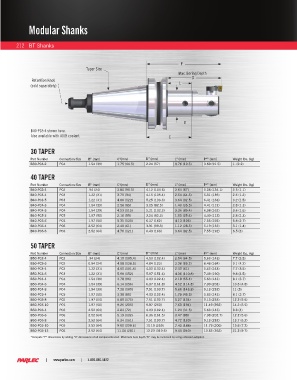

Page 214 - Parlec Catalog

Modular Shanks

212 BT Shanks

P
Taper Size
Max. Boring Depth
D
Retention Knob
(sold separately) L

B
B40-PC6-4 shown here.
Also available with AD/B coolant. C

30 TAPER

Part Number Connection Size B” (mm) C”(mm) D” (mm) L” (mm) P*” (mm) Weight lbs. (kg)
B30-PC4-2 PC4 1.54 (39) 1.75 (44.5) 2.24 (57) 0.76 (19.3) 3.60 (91.5) 1. (2.2)

40 TAPER

Part Number Connection Size B” (mm) C”(mm) D” (mm) L” (mm) P*” (mm) Weight lbs. (kg)
B40-PC2-4 PC2 .94 (24) 3.80 (96.5) 4.12 (104.6) 2.64 (67) 5.28 (134.1) 2.5 (1.1)
B40-PC3-4 PC3 1.22 (31) 3.70 (94) 4.15 (105.4) 2.54 (64.5) 5.31 (135) 2.6 (1.2)
B40-PC3-5 PC3 1.22 (31) 4.80 (122) 5.25 (133.3) 3.64 (92.5) 6.41 (163) 3.2 (1.5)
B40-PC4-3 PC4 1.54 (39) 2.56 (65) 3.25 (82.5) 1.40 (35.5) 4.41 (112) 2.8 (1.3)
B40-PC4-5 PC4 1.54 (39) 4.53 (115) 5.21 (132.3) 3.36 (85.4) 6.38 (162) 3.6 (1.6)
B40-PC5-3 PC5 1.97 (50) 2.16 (55) 3.24 (82.3) 1.00 (25.4) 4.40 (112) 2.8 (1.3)
B40-PC5-6 PC5 1.97 (50) 5.31 (135) 6.37 (162) 4.13 (105) 7.55 (192) 5.8 (2.7)
B40-PC6-4 PC6 2.52 (64) 2.40 (61) 3.91 (99.3) 1.12 (28.5) 5.19 (132) 3.1 (1.4)
B40-PC6-6 PC6 2.52 (64) 4.76 (121) 6.43 (163) 3.64 (92.5) 7.55 (192) 6.5 (3)

50 TAPER
Part Number Connection Size B” (mm) C”(mm) D” (mm) L” (mm) P*” (mm) Weight lbs. (kg)
B50-PC2-4 PC2 .94 (24) 4.15 (105.4) 4.03 (102.4) 2.54 (64.5) 5.63 (143) 7.7 (3.5)
B50-PC2-5 PC2 0.94 (24) 4.98 (126.5) 4.84 (123) 3.36 (85.3) 6.46 (164) 9.1 (4.2)
B50-PC3-4 PC3 1.22 (31) 4.00 (101.6) 4.03 (102.4) 2.40 (61) 5.63 (143) 7.7 (3.5)
B50-PC3-6 PC3 1.22 (31) 5.98 (152) 5.97 (151.6) 4.36 (110.8) 7.49 (190) 9.8 (4.5)
B50-PC4-4 PC4 1.54 (39) 3.78 (96) 4.03 (102.4) 2.18 (55.4) 5.63 (143) 8.1 (3.7)
B50-PC4-6 PC4 1.54 (39) 6.14 (156) 6.37 (161.8) 4.52 (114.8) 7.99 (203) 10.5 (4.8)
B50-PC4-8 PC4 1.54 (39) 7.28 (185) 7.51 (190.7) 5.66 (143.8) 9.13 (232) 11 (5)
B50-PC5-4 PC5 1.97 (50) 3.38 (86) 4.03 (102.4) 1.79 (45.5) 5.63 (143) 8.1 (3.7)
B50-PC5-8 PC5 1.97 (50) 6.89 (175) 7.51 (190.7) 5.27 (134) 9.13 (232) 12.2 (5.6)
B50-PC5-10 PC5 1.97 (50) 9.25 (235) 9.87 (250) 7.63 (194) 11.49 (292) 14.2 (6.5)
B50-PC6-4 PC6 2.52 (64) 2.84 (72) 4.03 (102.4) 1.24 (31.5) 5.63 (143) 8.8 (4)
B50-PC6-6 PC6 2.52 (64) 5.19 (132) 6.36 (161.5) 3.47 (88) 7.98 (202.7) 12.2 (5.6)
B50-PC6-8 PC6 2.52 (64) 6.34 (161) 7.51 (190.7) 4.72 (120) 9.13 (232) 13.7 (6.2)
B50-PC6-10 PC6 2.52 (64) 9.00 (228.6) 10.19 (259) 7.40 (188) 11.79 (300) 15.8 (7.2)
B50-PC6-12 PC6 2.52 (64) 11.06 (281) 12.23 (310.6) 9.44 (240) 13.85 (352) 21.2 (9.7)
*Compute “P” dimensions by adding “C” dimensions of all components used. Maximum bore depth “D” may be increased by using extension adapters.
