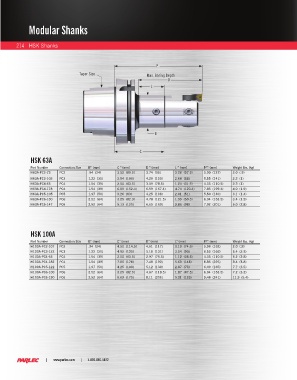

Modular Shanks

214 HSK Shanks

P
Taper Size Max. Boring Depth
D
L

B

C
HSK 63A

Part Number Connection Size B” (mm) C ” (mm) D ” (mm) L ” (mm) P*” (mm) Weight lbs. (kg)
H63A-PC2-73 PC2 .94 (24) 3.52 (89.5) 3.74 (95) 2.26 (57.5) 5.00 (127) 2.0 (.9)
H63A-PC3-103 PC3 1.22 (31) 3.94 (100) 4.29 (109) 2.68 (68) 5.55 (141) 2.2 (1)
H63A-PC4-65 PC4 1.54 (39) 2.50 (63.5) 3.09 (78.5) 1.24 (31.5) 4.35 (110.5) 2.3 (1)
H63A-PC4-178 PC4 1.54 (39) 6.00 (152.4) 6.59 (167.4) 4.74 (120.4) 7.85 (199.4) 4.0 (1.9)
H63A-PC5-105 PC5 1.97 (50) 3.26 (83) 4.25 (108) 2.01 (51) 5.50 (140) 3.1 (1.4)
H63A-PC6-100 PC6 2.52 (64) 3.25 (82.3) 4.78 (121.5) 1.99 (50.5) 6.04 (153.5) 3.4 (1.5)
H63A-PC6-147 PC6 2.52 (64) 5.13 (130) 6.65 (169) 3.86 (98) 7.92 (201) 6.0 (2.8)

HSK 100A

Part Number Connection Size B” (mm) C” (mm) D” (mm) L” (mm) P*” (mm) Weight lbs. (kg)
H100A-PC2-107 PC2 .94 (24) 4.51 (114.5) 4.61 (117) 3.13 (74.5) 5.98 (152) 2.0 (.9)
H100A-PC3-122 PC3 1.22 (31) 4.92 (125) 5.16 (131) 3.54 (90) 6.53 (166) 6.4 (2.9)
H100A-PC4-65 PC4 1.54 (39) 2.50 (63.5) 2.97 (75.5) 1.12 (28.5) 4.35 (110.5) 6.2 (2.8)
H100A-PC4-182 PC4 1.54 (39) 7.00 (178) 7.48 (190) 5.63 (143) 8.85 (225) 8.4 (3.8)
H100A-PC5-122 PC5 1.97 (50) 4.25 (108) 5.12 (130) 2.87 (73) 6.49 (165) 7.7 (3.5)
H100A-PC6-100 PC6 2.52 (64) 3.25 (82.5) 4.67 (118.5) 1.87 (47.5) 6.04 (153.5) 7.2 (3.3)
H100A-PC6-190 PC6 2.52 (64) 6.69 (170) 8.11 (206) 5.31 (135) 9.48 (241) 11.9 (5.4)
