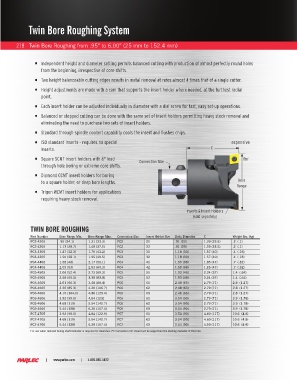

Twin Bore Roughing System

218 Twin Bore Roughing from .95” to 6.00” (25 mm to 152.4 mm)

ƒ Independent height and diameter setting permits balanced cutting with production of almost perfectly round holes
from the beginning, irrespective of core shifts.

ƒ Two height balanceable cutting edges results in metal removal at rates almost 4 times that of a single cutter.

ƒ Height adjustments are made with a cam that supports the insert holder where needed, at the furthest radial
point.
ƒ Each insert holder can be adjusted individually in diameter with a dial screw for fast, easy set-up operations.

ƒ Balanced or stepped cutting can be done with the same set of insert holders permitting heavy stock removal and
eliminating the need to purchase two sets of insert holders.
ƒ Standard through-spindle coolant capability cools the insert and flushes chips.

ƒ ISO standard inserts – requires no special expensive
inserts. C
ƒ Square SCMT insert holders with 6° lead for
Connection Size
through hole boring or extreme core shifts.

ƒ Diamond CCMT insert holders for boring
to a square holder, or deep bore lengths. Bore
Range
ƒ Trigon WCMT insert holders for applications
requiring heavy stock removal.

Inserts & Insert Holders
(sold separtely)

TWIN BORE ROUGHING

Part Number Bore Range Min. Bore Range Max. Connection Size Insert Holder Size Body Diameter C Weight lbs. (kg)
PC2-4205 .95 (24.1) 1.31 (33.3) PC2 21 .91 (23) 1.39 (33.5) .2 (.1)
PC2-4205 1.13 (28.7) 1.48 (37.6) PC2 22 .91 (23) 1.39 (33.5) .2 (.1)
PC3-4305 1.27 (32.3) 1.70 (43.2) PC3 31 1.18 (30) 1.57 (40) .4 (.18)
PC3-4305 1.50 (38.1) 1.95 (49.5) PC3 32 1.18 (30) 1.57 (40) .4 (.18)
PC4-4405 1.58 (40) 2.17 (55.1) PC4 41 1.50 (38) 1.85 (47) .7 (.32)
PC4-4405 2.09 (53) 2.53 (64.3) PC4 42 1.50 (38) 1.85 (47) .7 (.32)
PC5-4505 2.06 (52.4) 2.73 (69.3) PC5 51 1.93 (49) 2.24 (57) 1.4 (.64)
PC5-4505 2.58 (65.5) 3.30 (83.8) PC5 52 1.93 (49) 2.24 (57) 1.4 (.64)
PC6-4605 2.61 (66.3) 3.48 (88.4) PC6 61 2.48 (63) 2.79 (71) 2.8 (1.27)
PC6-4605 3.36 (85.3) 4.20 (106.7) PC6 62 2.48 (63) 2.79 (71) 2.8 (1.27)
PC6-4605 4.10 (104.1) 4.86 (123.4) PC6 63 2.48 (63) 2.79 (71) 2.8 (1.27)
PC6-4606 3.92 (99.6) 4.84 (123) PC6 61 3.54 (90) 2.79 (71) 3.9 (1.78)
PC6-4606 4.68 (119) 5.54 (140.7) PC6 62 3.54 (90) 2.79 (71) 3.9 (1.78)
PC6-4606 5.44 (138) 6.20 (157.4) PC6 63 3.54 (90) 2.79 (71) 3.9 (1.78)
PC7-4705 3.92 (99.6) 4.84 (122.9) PC7 61 3.54 (90) 4.60 (117) 10.6 (4.8)
PC7-4705 4.68 (119) 5.54 (140.7) PC7 62 3.54 (90) 4.60 (117) 10.6 (4.8)
PC7-4705 5.44 (138) 6.20 (157.4) PC7 63 3.54 (90) 4.60 (117) 10.6 (4.8)
For use when reduced boring shaft diameter is required for clearance. PC Connection OD should not be larger than the starting diameter of the hole.
