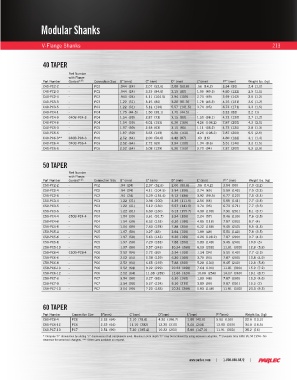

Page 215 - Parlec Catalog
P. 215
Modular Shanks
V-Flange Shanks 213
40 TAPER
Part Number
with Flange
Part Number Coolant*** Connection Size B” (mm) C” (mm) D” (mm) L” (mm) P*” (mm) Weight lbs. (kg)
C40-PC2-2 - PC2 .944 (24) 2.07 (52.6) 2.00 (50.8) .56 (14.2) 3.54 (90) 2.4 (1.1)
C40-PC2-3 - PC2 .944 (24) 3.33 (84.6) 3.15 (80) 1.95 (49.5) 4.80 (122) 2.5 (1.1)
C40-PC2-4 - PC2 .944 (24) 4.11 (104.5) 3.94 (100) 2.74 (69) 5.59 (142) 2.6 (1.2)
C40-PC3-3 - PC3 1.22 (31) 3.15 (80) 3.20 (81.3) 1.78 (45.2) 4.76 (121) 2.6 (1.2)
C40-PC3-5 - PC3 1.22 (31) 5.12 (130) 5.57 (141.5) 3.74 (95) 6.73 (171) 3.3 (1.5)
C40-PC4-1 - PC4 1.75 (44.5) 1.50 (38.1) 1.75 (44.5) - 3.23 (82) 2.2 (1)
C40-PC4-3 C40B-PC4-3 PC4 1.54 (39) 2.87 (73) 3.15 (80) 1.50 (38.1) 4.72 (120) 2.7 (1.2)
C40-PC4-6 - PC4 1.54 (39) 6.02 (153) 6.30 (160) 4.26 (108.2) 7.87 (200) 4.3 (2.0)
C40-PC5-3 - PC5 1.97 (50) 2.48 (63) 3.15 (80) 1.11 (28.2) 4.72 (120) 2.8 (1.3)
C40-PC5-6 - PC5 1.97 (50) 5.63 (143) 6.30 (160) 4.26 (108.2) 7.87 (200) 5.5 (2.5)
C40-PC6-3** C40B-PC6-3 PC6 2.52 (64) 2.00 (50.8) 3.42 (87) .63 (16) 4.80 (122) 3.1 (1.4)
C40-PC6-4 C40B-PC6-4 PC6 2.52 (64) 2.72 (69) 3.94 (100) 1.34 (8.6) 5.51 (140) 3.3 (1.5)
C40-PC6-6 - PC6 2.52 (64) 5.08 (129) 6.30 (160) 3.70 (94) 7.87 (200) 6.3 (2.9)
50 TAPER
Part Number
with Flange
Part Number Coolant*** Connection Size B” (mm) C” (mm) D” (mm) L” (mm) P*” (mm) Weight lbs. (kg)
C50-PC2-2 - PC2 .94 (24) 2.07 (52.6) 2.00 (50.8) .56 (14.2) 3.54 (90) 7.0 (3.2)
C50-PC2-4 - PC2 .94 (24) 4.11 (104.5) 3.94 (100) 2.74 (69) 5.59 (142) 7.0 (3.2)
C50-PC2-5 - PC2 .94 (24) 5.29 (134.4) 5.12 (130) 3.92 (99.5) 6.77 (122) 7.3 (3.3)
C50-PC3-4 - PC3 1.22 (31) 3.94 (100) 4.39 (111.5) 2.56 (65) 5.55 (141) 7.7 (3.5)
C50-PC3-5 - PC3 1.22 (31) 5.12 (130) 5.57 (141.5) 3.74 (95) 6.73 (171) 7.7 (3.5)
C50-PC3-6 - PC3 1.22 (31) 6.30 (160) 6.13 (155.7) 4.30 (109) 7.91 (201) 8.1 (3.7)
C50-PC4-4 C50B-PC4-4 PC4 1.54 (39) 3.61 (91.7) 3.94 (100) 2.24 (57) 5.46 (139) 7.6 (3.5)
C50-PC4-6 - PC4 1.54 (39) 6.02 (153) 6.30 (160) 4.65 (118) 7.87 (200) 8.7 (4)
C50-PC4-8 - PC4 1.54 (39) 7.60 (193) 7.88 (200) 6.22 (158) 9.45 (240) 9.5 (4.3)
C50-PC5-4 - PC5 1.97 (50) 3.27 (83) 3.94 (100) 1.89 (48) 5.51 (140) 7.8 (3.5)
C50-PC5-6 - PC5 1.97 (50) 5.63 (143) 6.30 (160) 4.26 (108.2) 7.87 (200) 9.7 (4.3)
C50-PC5-8 - PC5 1.97 (50) 7.20 (183) 7.88 (200) 5.83 (148) 9.45 (240) 10.9 (5)
C50-PC5-10 - PC5 1.97 (50) 9.57 (243) 10.24 (260) 8.19 (208) 11.81 (300) 12.8 (5.8)
C50-PC6-4 C50B-PC6-4 PC6 2.52 (64) 2.72 (69) 3.94 (100) 1.34 (34) 5.51 (140) 7.7 (3.5)
C50-PC6-6 - PC6 2.52 (64) 5.08 (129) 6.30 (160) 3.70 (94) 7.87 (200) 10.8 (4.9)
C50-PC6-8 - PC6 2.52 (64) 6.65 (169) 7.88 (200) 5.28 (134) 9.45 (240) 12.8 (5.8)
C50-PC6-10 - PC6 2.52 (64) 9.02 (229) 10.24 (260) 7.64 (194) 11.81 (300) 15.9 (7.2)
C50-PC6-12 - PC6 2.52 (64) 11.38 (289) 12.60 (320) 10.00 (254) 14.17 (360) 19.1 (8.7)
C50-PC7-6 - PC7 3.54 (90) 3.27 (83) 6.30 (160) 1.89 (48) 7.87 (200) 10.0 (4.6)
C50-PC7-8 - PC7 3.54 (90) 5.27 (134) 8.30 (210) 3.89 (99) 9.87 (251) 15.3 (7)
C50-PC7-10 - PC7 3.54 (90) 7.20 (183) 10.24 (260) 5.83 (148) 11.81 (300) 20.3 (9.2)
60 TAPER
Part Number Connection Size B”(mm) C”(mm) D”(mm) L”(mm) P*”(mm) Weight lbs. (kg)
C60-PC6-4 PC6 2.52 (64) 3.10 (78.8) 4.20 (106.7) 1.60 (40.6) 5.90 (150) 22.6 (10.3)
C60-PC6-12 PC6 2.52 (64) 11.10 (282) 12.20 (310) 9.60 (244) 13.90 (353) 34.0 (15.5)
C60-PC7-10 PC7 3.54 (90) 7.30 (185.4) 10.22 (260) 5.80 (147.3) 11.91 (303) 35.2 (16)
* Compute “P” dimensions by adding “C” dimensions of all components used. Maximum bore depth “D” may be increased by using extension adapters. ** Deviates from ANSI B5.50 1994 - No
clearance for some tool changers. *** Other sizes available on request.
