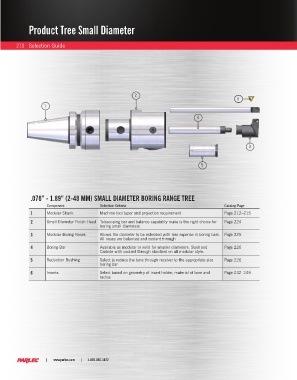

Product Tree Small Diameter

210 Selection Guide

2
6
1

4

3

5

.078” - 1.89” (2-48 MM) SMALL DIAMETER BORING RANGE TREE
Component Selection Criteria Catalog Page
1 Modular Shank Machine tool taper and projection requirement Page 212–215

2 Small Diameter Finish Head Telescoping bar and balance capability make is the right choice for Page 224
boring small diameters
3 Modular Boring Noses Allows the diameter to be extended with less expense in boring bars. Page 225
All noses are balanced and coolant through

4 Boring Bar Available as modular or solid for smaller diameters. Steel and Page 226
Carbide with coolant through standard on all modular style.
5 Reduction Bushing Select to reduce the bore through receiver to the appropriate size Page 226
boring bar

6 Inserts Select based on geometry of insert holder, material of bore and Page 242–249
radius
