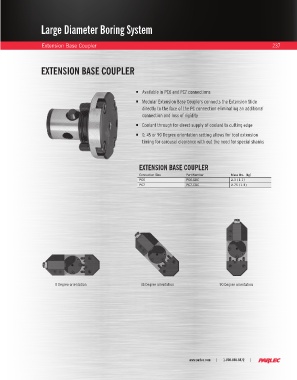

P. 239
Large Diameter Boring System
Extension Base Coupler 237
EXTENSION BASE COUPLER
Available in PC6 and PC7 connections
Modular Extension Base Couplers connects the Extension Slide
directly to the face of the PC connection eliminating an additional
connection and loss of rigidity
Coolant through for direct supply of coolant to cutting edge
0, 45 or 90 Degree orientation setting allows for tool extension
timing for carousel clearance with out the need for special shanks
EXTENSION BASE COUPLER
Connection Size Part Number Mass lbs. (kg)
PC6 PC6-EBC 2.3 ( 1.1)
PC7 PC7-EBC 2.75 ( 1.3)
0 Degree orientation 45 Degree orientation 90 Degree orientation
