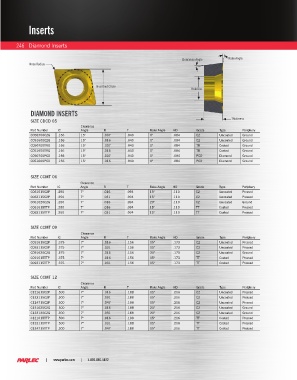

Page 248 - Parlec Catalog

Inserts

246 Diamond Inserts

Clearance Angle Rake Angle
Nose Radius

Inscribed Circle
Hole Dia.

DIAMOND INSERTS
Thickness
SIZE CDCD 05
Clearance
Part Number IC Angle R T Rake Angle HD Grade Type Periphery
C050700C2G .156 15° .007 .040 0° .084 C2 Uncoated Ground
C051600C2G .156 15° .016 .040 0° .084 C2 Uncoated Ground
C050700TRG .156 15° .007 .040 0° .084 TR Coated Ground
C051600TRG .156 15° .016 .040 0° .084 TR Coated Ground
C050700PCD .156 15° .007 .040 0° .084 PCD Diamond Ground
C051600PCD .156 15° .016 .040 0° .084 PCD Diamond Ground

SIZE CCMT 06
Clearance
Part Number IC Angle R T Rake Angle HD Grade Type Periphery
C061615C2P .250 7° .016 .094 15° .110 C2 Uncoated Pressed
C063115C2P .250 7° .031 .094 15° .110 C2 Uncoated Pressed
C061620C2G .250 7° .016 .094 20° .110 C2 Uncoated Ground
C061615TTP .250 7° .016 .094 15° .110 TT Coated Pressed
C063115TTP .250 7° .031 .094 15° .110 TT Coated Pressed

SIZE CCMT 09
Clearance
Part Number IC Angle R T Rake Angle HD Grade Type Periphery
C091615C2P .375 7° .016 .156 15° .173 C2 Uncoated Pressed
C093115C2P .375 7° .031 .156 15° .173 C2 Uncoated Pressed
C091620C2G .375 7° .016 .156 20° .173 C2 Uncoated Ground
C091615TTP .375 7° .016 .156 15° .173 TT Coated Pressed
C093115TTP .375 7° .031 .156 15° .173 TT Coated Pressed

SIZE CCMT 12
Clearance
Part Number IC Angle R T Rake Angle HD Grade Type Periphery
C121615C2P .500 7° .016 .188 15° .216 C2 Uncoated Pressed
C123115C2P .500 7° .031 .188 15° .216 C2 Uncoated Pressed
C124715C2P .500 7° .047 .188 15° .216 C2 Uncoated Pressed
C121620C2G .500 7° .016 .188 20° .216 C2 Uncoated Ground
C123120C2G .500 7° .031 .188 20° .216 C2 Uncoated Ground
C121615TTP .500 7° .016 .188 15° .216 TT Coated Pressed
C123115TTP .500 7° .031 .188 15° .216 TT Coated Pressed
C124715TTP .500 7° .047 .188 15° .216 TT Coated Pressed
