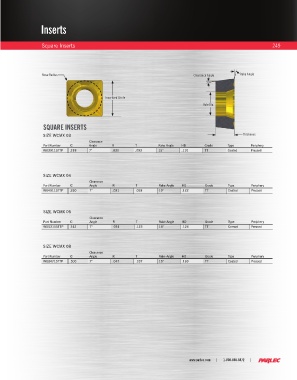

Page 251 - Parlec Catalog
P. 251
Inserts
Square Inserts 249
Nose Radius Clearance Angle Rake Angle
Inscribed Circle
Hole Dia.
SQUARE INSERTS
SIZE WCMX 03 Thickness
Clearance
Part Number IC Angle R T Rake Angle HD Grade Type Periphery
W033115TTP .218 7° .031 .093 15° .110 TT Coated Pressed
SIZE WCMX 04
Clearance
Part Number IC Angle R T Rake Angle HD Grade Type Periphery
W043115TTP .250 7° .031 .093 15° .122 TT Coated Pressed
SIZE WCMX 05
Clearance
Part Number IC Angle R T Rake Angle HD Grade Type Periphery
W053115TTP .312 7° .031 .125 15° .126 TT Cermet Pressed
SIZE WCMX 08
Clearance
Part Number IC Angle R T Rake Angle HD Grade Type Periphery
W084715TTP .500 7° .047 .187 15° .169 TT Coated Pressed
