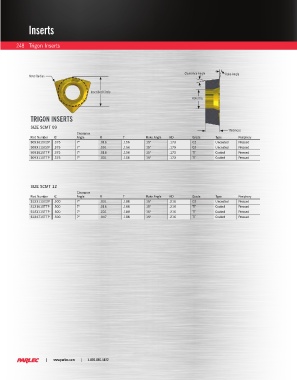

Page 250 - Parlec Catalog

Inserts

248 Trigon Inserts

Clearance Angle Rake Angle
Nose Radius

Inscribed Circle
Hole Dia.

TRIGON INSERTS

SIZE SCMT 09
Thickness
Clearance
Part Number IC Angle R T Rake Angle HD Grade Type Periphery
S091615C2P .375 7° .016 .156 15° .173 C2 Uncoated Pressed
S093115C2P .375 7° .031 .156 15° .173 C2 Uncoated Pressed
S091615TTP .375 7° .016 .156 15° .173 TT Coated Pressed
S093115TTP .375 7° .031 .156 15° .173 TT Coated Pressed

SIZE SCMT 12
Clearance
Part Number IC Angle R T Rake Angle HD Grade Type Periphery
S123115C2P .500 7° .031 .188 15° .216 C2 Uncoated Pressed
S121615TTP .500 7° .016 .188 15° .216 TT Coated Pressed
S123115TTP .500 7° .031 .188 15° .216 TT Coated Pressed
S124715TTP .500 7° .047 .188 15° .216 TT Coated Pressed
