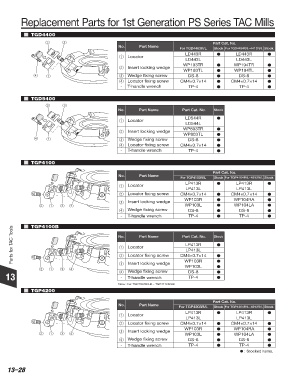

Replacement Parts for 1st Generation PS Series TAC Mills

TGD4400
w e Part Cat. No.
No.

Part Name For TGD4403R/L Stock For TGD4404R/L~4412R/L Stock
LD443R d LD443R d
q Locator
LD443L LD443L
WP193TR d WP194TR d
w Insert locking wedge
WP193TL d WP194TL d
r q e Wedge fixing screw DS-8 d DS-8 d
r Locator fixing screw CM4×0.7×14 d CM4×0.7×14 d
- T-handle wrench TP-4 d TP-4 d
TGD5400
w e
No. Part Name Part Cat. No. Stock
LD544R d
q Locator
LD544L
WP803TR d
w Insert locking wedge
WP803TL d
r q e Wedge fixing screw DS-8 d
r Locator fixing screw CM4×0.7×14 d
- T-handle wrench TP-4 d

TGP4100

No. Part Name Part Cat. No.
For TGP4103R/L Stock For TGP4104R/L~4212R/L Stock
q Locator LP413R d LP413R d
LP413L LP413L
w Locator fixing screw CM4×0.7×14 d CM4×0.7×14 d
e Insert locking wedge WP103R d WP104RA d
w q e r WP103L d WP104LA d
r Wedge fixing screw DS-8 d DS-8 d
- T-handle wrench TP-4 d TP-4 d

TGP4100B
Parts for TAC Tools No. Part Name CM4×0.7×14 Stock
Part Cat. No.
LP413R
d
q Locator
LP413L
w Locator fixing screw
d
WP103L
d
w q e r e Insert locking wedge WP103R d
r Wedge fixing screw
DS-8
d
13 - T-handle wrench TP-4 d
Note : For TGP4104R/LB ~ TGP4112R/LB
TGP4200
No. Part Name Part Cat. No.
For TGP4203R/L Stock For TGP4204R/L~4212R/L Stock
LP413R d LP413R d
q Locator
LP413L LP413L
w Locator fixing screw CM4×0.7×14 d CM4×0.7×14 d
WP103R d WP104RA d
e Insert locking wedge
w q e r WP103L d WP104LA d
r Wedge fixing screw DS-8 d DS-8 d
- T-handle wrench TP-4 d TP-4 d
d : Stocked items.
