Page 1014 - Tungaloy Catalog

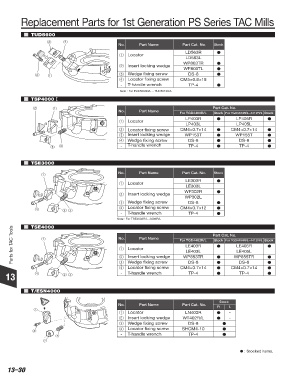

Replacement Parts for 1st Generation PS Series TAC Mills

TUD5600
e r
No. Part Name Part Cat. No. Stock
LD563R d
q Locator
LD563L
WP803TR d
w Insert locking wedge
WP803TL d
w q e Wedge fixing screw DS-8 d
r Locator fixing screw CM5×0.8×18
- T-handle wrench TP-4 d
Note : For TUD5603R/L ~ TUD5612R/L
TSP4000!

w q Part Cat. No.
No.

Part Name For TGD4403R/L Stock For TGD4404R/L~4412R/L Stock
LP403R d LP405R d
q Locator
LP403L LP405L
w Locator fixing screw CM4×0.7×14 d CM4×0.7×14 d
e Insert locking wedge WP153T d WP155T d
r Wedge fixing screw DS-8 d DS-8 d
e r - T-handle wrench TP-4 d TP-4 d

TSE3000
No. Part Name Part Cat. No. Stock
q
LE303R d
q Locator
LE303L
WP302R d
w Insert locking wedge
WP302L
e Wedge fixing screw DS-8 d
r Locator fixing screw CM4×0.7×12 d
r w e
- T-handle wrench TP-4 d
Note : For TSE3003R/L~3006R/L
TSE4000
Parts for TAC Tools q Part Name For TGD4403R/L Part Cat. No. LE405R d
No.

Stock For TGD4404R/L~4412R/L Stock
LE403R
d
q Locator
LE403L
LE405L
w Insert locking wedge
WP853TR
WP855TR
DS-8
DS-8
e Wedge fixing screw
d
d
r Locator fixing screw CM4×0.7×14 d CM4×0.7×14 d
d
d
13 r w e - T-handle wrench TP-4 d TP-4 d
T/ESN4000
Stock
No. Part Name Part Cat. No.
R L
q
q Locator LN403R d -
w Insert locking wedge WT402R/L d -
e Wedge fixing screw DS-8 d
r Locator fixing screw SHCM4-10 d
r
e - T-handle wrench TP-4 d
w
d : Stocked items.
13–30 13–31
