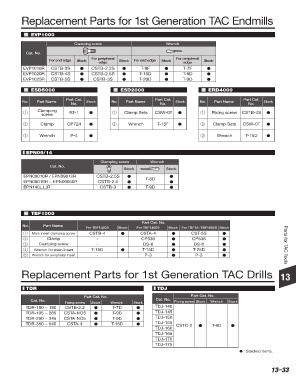

Page 1017 - Tungaloy Catalog

Replacement Parts for 1st Generation TAC Endmills

EVP1000
Clamping screw Wrench

Cat. No.
For end edge Stock For peripheral Stock For end edge Stock For peripheral Stock
edge edge
EVP1016R CSTB-3S d CSTB-2.2S d T-9F d T-7F d
EVP1020R CSTB-4S d CSTB-2.5S d T-15D d T-8D d
EVP1025R CSTB-5S d CSTB-3S d T-20D d T-9D d

ESD5000 ESD2000 ERD4000
Part Cat. Part Cat. Part Cat.
No. Part Name Stock No. Part Name Stock No. Part Name Stock
No. No. No.
q Clamping RT-1 d q Clamp Sets CSW-0T d q Fixing screw CSTB-4S d
screw
w Clamp CP724 d w Wrench T-15F d w Clamp Sets CSW-0T d

e Wrench P-4 d e Wrench T-15D d

EPN09/14

Clamping screw Wrench
Cat. No.
Stock Stock
EPN09010R / EPN09012R CSTB-2.5S d T-8D d
EPN09016R ~ EPN09050R CSTB-2.5 d d
EPN140uuR CSTB-3 d T-9D d

TBF1000
No. Part Name Part Cat. No.
For TBF1320S Stock For TBF1400S Stock For TBF15~TBF1600S Stock
q Main insert clamping screw CSTB-4 d CSTA-4 d CST-5S d
w Clamp - CP536 d CP536 d
e Clamping screw - DS-6 d DS-6 d Parts for TAC Tools
r Wrench for main insert T-15D d T-15D d T-25D d
t Wrench for peripheral insert - P-3 d P-3 d

Replacement Parts for 1st Generation TAC Drills 13

TDR TDJ

Part Cat. No. Part Cat. No.
Cat. No. Cat. No. Fixing screw Stock Wrench Stock
Fixing screw Stock Wrench Stock
TDR-180 ~ 190 CSTB-2.2 d T-7D d TDJ-140
TDR-195 ~ 285 CSTA-NO3 d T-9D d TDJ-145
TDR-290 ~ 345 CSTA-NO5 d T-9D d TDJ-150
TDR-350 ~ 540 CSTA-4 d T-15D d TDJ-155 CSTC-2 d T-6D d
TDJ-160
TDJ-165
TDJ-170
TDJ-175
d : Stocked items.
