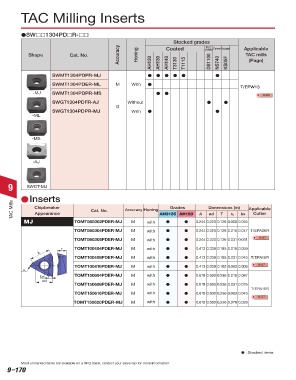

TAC Milling Inserts

dSW1304PDR-
Stocked grades
Accuracy Honing AH120 AH130 AH140 T3130 T1115 DS1100 NS740 KS05F (Page)
DLC
Shape Coated coated Cermet Uncoated Applicable
TAC mills
Cat. No.

SWMT1304PDPR-MJ d d d d d d
SWMT1304PDER-ML M With d
T/EPW13
-MJ SWMT1304PDPR-MS d d 9-62
SWGT1304PDFR-AJ Without d d
G
SWGT1304PDPR-MJ With d d
-ML

-MS

-AJ

9 SWGT-MJ

Inserts
TAC Mills Chipbreaker Cat. No. Accuracy Honing AH3135 AH120 A Dimensions (in) bs Applicable
Grades
Appearance
Cutter
T
ød
rε
MJ TOMT060302PDER-MJ M with d d 0.244 0.220 0.126 0.008 0.055
TOMT060304PDER-MJ M with d d 0.244 0.220 0.126 0.016 0.047 T/EPA06R
TOMT060308PDER-MJ M with d d 0.244 0.220 0.126 0.031 0.031 9-57
T
T TOMT100404PDER-MJ M with d d 0.413 0.339 0.185 0.016 0.059
A A
TOMT100408PDER-MJ M with d d 0.413 0.339 0.185 0.031 0.043 T/EPA10R
MJ TOMT100416PDER-MJ M with d d 0.413 0.339 0.185 0.063 0.008 9-57
� ε
ød bs TOMT150604PDER-MJ M with d d 0.618 0.500 0.236 0.016 0.087
ød
TOMT150608PDER-MJ M with d d 0.618 0.500 0.236 0.031 0.075
T/EPA15R
TOMT150616PDER-MJ M with d d 0.618 0.500 0.236 0.063 0.043
9-57
TOMT150620PDER-MJ M with d d 0.618 0.500 0.236 0.079 0.028

d : Stocked items
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
