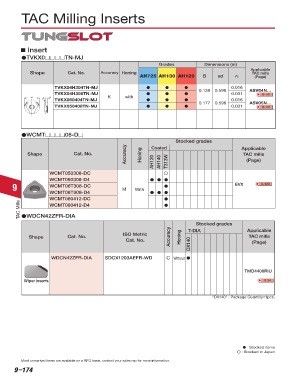

Page 774 - Tungaloy Catalog

TAC Milling Inserts

Insert
dTVKX0TN-MJ
Grades Dimensions (in)
Applicable
Shape Cat. No. Accuracy Honing TAC mills
AH725 AH130 AH120 B ød rε (Page)
TVKX04H304TN-MJ d d d 0.138 0.598 0.016 ASV04N…
TVKX04H308TN-MJ d d d 0.031 9-141
B K with
TVKX050404TN-MJ d d d 0.016
TVKX050408TN-MJ d d d 0.177 0.598 0.031 ASV05N…
9-141

dWCMT08-D
Stocked grades
Accuracy Honing AH120 AH140 T313W (Page)
Shape Cat. No. Coated Applicable
TAC mills

WCMT050308-DC
WCMT050308-D4 d d d
9 WCMT06T308-DC M With d EVX 9-120
WCMT06T308-D4 d d d
WCMT080412-DC d
TAC Mills dWDCN42ZFR-DIA d
WCMT080412-D4

Stocked grades

TAC mills
Shape Cat. No. ISO Metric Accuracy Honing T-DIA Applicable
Cat. No. DX140 (Page)

WDCN42ZFR-DIA SDCX1203AEFR-WD C Without d

TMD4400RIU
Wiper inserts 9-34

“DX140” : Package Quantity=1pcs.

d : Stocked items
: Stocked in Japan
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
9–174
