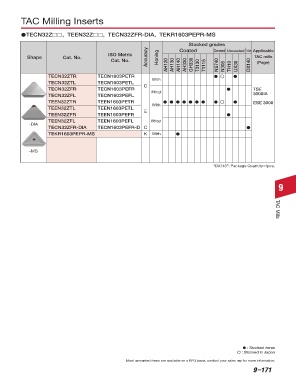

TAC Milling Inserts

dTECN32Z, TEEN32Z, TECN32ZFR-DIA, TEKR1603PEPR-MS
Stocked grades

ISO Metric Coated Cermet Uncoated T-DIA Applicable
Shape Cat. No. Accuracy Honing TAC mills
Cat. No. AH120 AH130 AH140 AH330 GH330 T3130 T1115 NS740 N308 TH10 UX30 DX140 (Page)

TECN32ZTR TECN1603PETR d d
TECN32ZTL TECN1603PETL C With
TECN32ZFR TECN1603PEFR Without d TSE
TECN32ZFL TECN1603PEFL 3000IA
TEEN32ZTR TEEN1603PETR d d d d d d d d d ESE 3000
TEEN32ZTL TEEN1603PETL With
TEEN32ZFR TEEN1603PEFR E d
TEEN32ZFL TEEN1603PEFL Without
-DIA
TECN32ZFR-DIA TECN1603PEFR-D C d
TEKR1603PEPR-MS K With d

-MS

“DX140”: Package Quantity=1pcs.

9

TAC Mills

d : Stocked items
: Stocked in Japan
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
9–171
