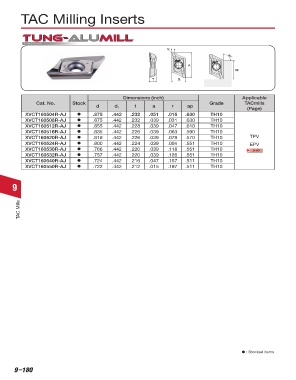

Page 780 - Tungaloy Catalog

TAC Milling Inserts

rɛ

A
ap

T B

Dimensions (inch) Applicable
Cat. No. Stock Grade TACmills
d t a r ap
(Page)
d 1
XVCT160504R-AJ  .875 .442 .232 .051 .016 .630 TH10
XVCT160508R-AJ  .875 .442 .232 .039 .031 .630 TH10
XVCT160512R-AJ  .855 .442 .228 .039 .047 .610 TH10
XVCT160516R-AJ  .835 .442 .226 .039 .063 .590 TH10
XVCT160520R-AJ  .818 .442 .226 .039 .079 .570 TH10 TPV
XVCT160524R-AJ  .800 .442 .224 .039 .094 .551 TH10 EPV
XVCT160530R-AJ  .766 .442 .220 .039 .118 .551 TH10 9-80
XVCT160532R-AJ  .757 .442 .220 .039 .126 .551 TH10
XVCT160540R-AJ  .724 .442 .216 .047 .157 .511 TH10
XVCT160550R-AJ  .722 .442 .212 .015 .197 .511 TH10

9

TAC Mills

 : Stocked items
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
9–180
