easylock
TUNGAL O Y

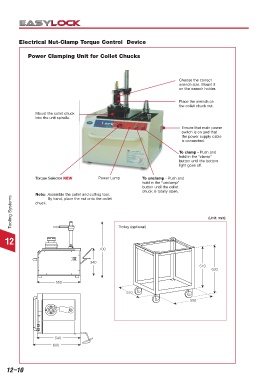

Electrical Nut-Clamp Torque Control Device

Power Clamping Unit for Collet Chucks

Choose the correct
wrench size. Mount it
on the wrench holder.

Place the wrench on
the collet chuck nut.
Mount the collet chuck
into the unit spindle.

Ensure that main power
switch is on and that
the power supply cable
is connected.

To clamp - Push and
hold in the “clamp”
button until the bottom
light goes off.

Torque Selector NEW Power Lamp To unclamp - Push and
hold in the “unclamp”
button until the collet
chuck is totally open.
Note: Assemble the collet and cutting tool.
Tooling Systems chuck. (Unit: mm)
By hand, place the nut onto the collet

12 Trolley (optional)

700

340
510
630

500
510
550

540
600

12–10
