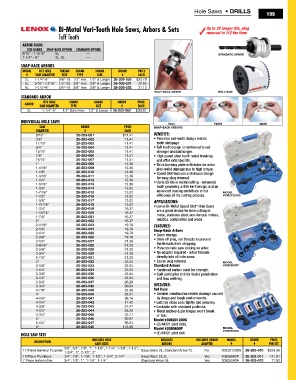

Page 201 - All Industrial Tool Supply | General Catalog

Hole Saws • DRILLS
199

Bi-Metal Vari-Tooth Hole Saws, Arbors & Sets Up to 2X longer life, plug
removal in 1/2 the time
Tuff Tooth
ArBor Guide:
Size rAnGe SnAp-BAck opTion STAndArd opTion
9/16" - 1-3/16" 5L — StAndArd ArBor
1-1/4" - 6" 2L, 6L —
SnAp-BAck ArBorS
Model FiTS Hole THreAd SHAnk SHAnk order price
# SAw diAMeTer Size Type Size # eAcH
2L 1-1/4"-6" 5/8"-18 1/2" Hex 1/2" & Larger 26-203-050 $33.79
5L 9/16"-1-3/16" 1/2"-20 3/8" Hex 3/8" & Larger 26-203-051 22.85
6L 1-1/4"-6" 5/8"-18 3/8" Hex 3/8" & Larger 26-203-052 31.13
SnAP-BAck ArBor Hole SAw
STAndArd ArBor
FiTS Hole SHAnk SHAnk order price
ArBor
SAw diAMeTer Type Size # eAcH
3L 1-1/4"-6" 1/2" Solid Hex 1/2" & Larger 26-203-062 $30.82
indiViduAl Hole SAwS
SAw order price SnAP-BAck ArBorS
diAMeTer # eAcH
9/16" 26-203-001 $11.41 Benefits:
5/8" 26-203-002 11.41 • Patented vari-tooth design resists
11/16" 26-203-003 11.41 tooth strippage.
3/4" 26-203-004 11.41 • Tuff tooth design is reinforced to cut
13/16" 26-203-005 11.41 stronger and last longer.
7/8" 26-203-006 11.41 • High speed steel tooth resist breaking
15/16" 26-203-007 11.41 and offer extended life.
1" 26-203-008 12.36 • Thick backing plate with holes for drive
1-1/16" 26-203-009 12.36 pins resist damage due to high torque.
1-1/8" 26-203-010 12.36 • Speed Slot features a staircase design
1-3/16" 26-203-011 12.36 for easy plug removal.
1-1/4" 26-203-012 12.36 • Up to 2X life in metal cutting - enhanced
1-5/16" 26-203-013 12.36 tooth geometry, a thin kerf design, and an
1-3/8" 26-203-014 13.02
1-7/16" 26-203-015 13.02 advanced coating contribute to the Model
1-1/2" 26-203-016 13.02 efficiency of the cutting process. #308201200G
1-5/8" 26-203-017 13.02 APPLiCAtiOns:
1-11/16" 26-203-018 13.02 • Lenox Bi-Metal Speed Slot Hole Saws
™
1-3/4" 26-203-019 16.37 are a great choice for hole cutting in
1-13/16" 26-203-020 16.37 metal, stainless steel, non-ferrous metals,
1-7/8" 26-203-021 16.37
2" 26-203-022 16.37 plastics, composites and wood.
2-1/16" 26-203-023 19.76 feAtures:
2-1/8" 26-203-024 19.76 Snap-Back Arbors
2-1/4" 26-203-025 19.76 • Quick change.
2-3/8" 26-203-026 19.76 • Drive off pins, not threads to prevent
2-1/2" 26-203-027 21.29
2-9/16" 26-203-028 21.29 the threads from stripping.
2-5/8" 26-203-029 21.29 • Prevents hole saw locking on arbor.
2-3/4" 26-203-030 21.29 • No adaptor required - arbor threads
2-7/8" 26-203-031 21.29 directly into all hole saws.
3" 26-203-032 22.04 • Easier plug removal. Model
3-1/8" 26-203-033 22.64 Standard Arbors #30808600P
3-1/4" 26-203-034 22.64 • Hardened carbon steel for strength.
3-3/8" 26-203-035 22.64 • Split point pilot drill for faster penetration
3-1/2" 26-203-036 22.64 and less walking.
3-5/8" 26-203-037 26.20
3-3/4" 26-203-038 30.94 inCLudes:
3-7/8" 26-203-039 32.28 Set Case
4" 26-203-040 33.31 • Durable construction resists damage caused
4-1/8" 26-203-041 36.16 by drops and tough environments.
4-1/4" 26-203-042 47.42 • Latches close case tightly and securely.
4-3/8" 26-203-043 57.47 • Lockable with standard padlocks.
4-1/2" 26-203-044 65.39 • Metal latches & pin hinges won't break
4-3/4" 26-203-045 72.71 or tear.
5" 26-203-046 80.67 Model #308201200G
5-1/2" 26-203-047 96.64 • (3) #4321 pilot drills.
6" 26-203-048 112.80 Model #3080600P Model
Hole SAw SeTS • (1) #4321 pilot drill. #30805500A
includeS Hole includeS includeS ArBor Model order price
deScripTion
SAw SizeS ArBorS AdApTer # # per SeT
5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2",
17 Piece General Purpose Snap-Back 2L, Standard Arbor 1L No 308201200G 26-203-070 $226.86
1-3/4", 2", 2-1/2", 3"
10 Piece Plumbers 3/4", 7/8", 1-1/8", 1-1/2", 1-3/4", 2-1/4" Snap-Back 2L,5L Yes 30808600P 26-203-071 141.81
7 Piece Automotive 3/4", 7/8", 1", 1-1/8", 1-1/4" Standard Arbor 5L Yes 30805500A 26-203-072 77.92
