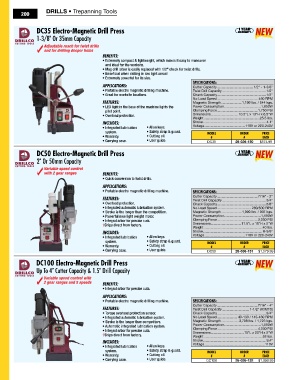

Page 202 - All Industrial Tool Supply | General Catalog

DRILLS • Trepanning Tools
200

DC35 Electro-Magnetic Drill Press
1-3/8" Or 35mm Capacity
Adjustable reach for twist drills
and for drilling deeper holes
Benefits:
• Extremely compact & lightweight, which makes it easy to maneuver
and ideal for the worksite.
• Mag drill arbor is easily replaced with 1/2" chuck for twist drills.
• Beneficial when drilling in low light areas!
• Extremely powerful for its size.
SPECifiCationS:
APPLiCAtiOns: Cutter Capacity ......................................1/2" - 1-3/8"
• Portable electro magnetic drilling machine. Twist Drill Capacity ...............................................1/2"
• Great for worksite locations. Chuck Capacity ....................................................1/2"
No Load Speed ........................................... 450 RPM
feAtures: Magnetic Strength ......................1,199 lbs. / 544 kgs.
• LED light in the base of the machine lights the Power Consumption .......................................1,050W
pilot point. Clamping Force ...........................................1,750 PSI
• Overload protection. Dimensions .............................10.5"L x 13"H x 6.5"W
Weight ...........................................................25.5 lbs.
inCLudes: Stroke .................................................................. 4.1"
• Integrated lubrication • Allen keys. Voltage ........................................... 110V or 220-240V
system. • Safety strap & guard. MoDEl orDEr PriCE
• Warranty. • Cutting oil. # # EaCh
• Carrying case. • User guide. DC35 26-036-150 $874.99
DC50 Electro-Magnetic Drill Press
2" Or 50mm Capacity

Variable speed control
with 2 gear ranges Benefits:
• Quick conversion to twist drills.
APPLiCAtiOns:
• Portable electro magnetic drilling machine. SPECifiCationS:
feAtures: Cutter Capacity ...........................................7/16" - 2"
Twist Drill Capacity ...............................................3/4"
• Overload protection. Chuck Capacity ....................................................5/8"
• Integrated automatic lubrication system. No Load Speed .................................... 280/500 RPM
• Stroke is the longer than the competition. Magnetic Strength ......................1,999 lbs. / 907 kgs.
• Powerful new light weight motor. Power Consumption .......................................1,150W
• Integral arbor for precise cuts. Clamping Force ...........................................2,000 PSI
†Ships direct from factory. Dimensions ................................11.5"L x 18"H x 5"W
Weight ..............................................................40 lbs.
inCLudes: Stroke .............................................................. 6-5/8"
• Integrated lubrication • Allen keys. Voltage ........................................... 110V or 220-240V
system. • Safety strap & guard. MoDEl orDEr PriCE
• Warranty. • Cutting oil. # # EaCh
• Carrying case. • User guide. DC50 26-036-151 $1,579.99
DC100 Electro-Magnetic Drill Press

Up To 4" Cutter Capacity & 1.5" Drill Capacity
Variable speed control with
2 gear ranges and 5 speeds Benefits:
• Integral arbor for precise cuts.
APPLiCAtiOns:
• Portable electro magnetic drilling machine. SPECifiCationS:
Cutter Capacity ...........................................7/16" - 4"
feAtures: Twist Drill Capacity .............................1-1/2" (#3MTS)
• Torque overload protection sensor. Chuck Capacity ....................................................3/4"
• Integrated automatic lubrication system. No Load Speed ..................... 40-130 / 145-430 RPM
• Stroke is the longer than competitors. Magnetic Strength ...................3,798 lbs. / 1,723 kgs.
• Automatic integrated lubrication system. Power Consumption .......................................1,850W
• Integral arbor for precise cuts. Clamping Force ...........................................4,000 PSI
†Ships direct from factory. Dimensions ...................................15"L x 20"H x 5"W
Weight ..............................................................58 lbs.
inCLudes: Stroke .................................................................. 9.4"
• Integrated lubrication • Allen keys. Voltage ................................................................ 110V
system. • Safety strap & guard. MoDEl orDEr PriCE
• Warranty. • Cutting oil. # # EaCh
• Carrying case. • User guide. DC100 26-036-152 $1,999.99
