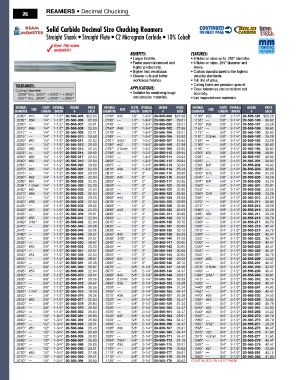

Page 28 - All Industrial Tool Supply | General Catalog

REAMERS • Decimal Chucking
26

Solid Carbide Decimal Size Chucking Reamers
Straight Shank • Straight Flute • C2 Micrograin Carbide • 10% Cobalt

Over 750 sizes
available!
Benefits: feAtures:
• Longer tool life. • 4 flutes on sizes up to .255” diameter.
• Faster material removal and • 6 flutes on sizes .255” diameter and
higher productivity. above.
• Higher heat resistance. • Custom manufactured to the highest
• Cleaner cuts and better industry standards.
workpiece finishes. • Full line of sizes.
ToleRanCeS: APPLiCAtiOns: • Cutting flutes are precision ground.
Cutting Diameter • Suitable for machining tough • Close tolerances and consistent tool
.0280" thru .2500": +.0000" / +.0002" accuracy.
.2501" thru .5000": +.0000" / +.0003" and abrasive materials. • Lab inspected raw materials.
DeCimal FluTe oveRall oRDeR PRiCe DeCimal FluTe oveRall oRDeR PRiCe DeCimal FluTe oveRall oRDeR PRiCe
DiameTeR Size lengTh lengTh # eaCh DiameTeR Size lengTh lengTh # eaCh DiameTeR Size lengTh lengTh # eaCh
.0280" #70 1/4" 1-1/2" 20-565-005 $22.04 .0730" #49 1/2" 1-3/4" 20-565-096 $27.98 .1130" #33 5/8" 2-1/4" 20-565-181 $26.28
.0292" #69 1/4" 1-1/2" 20-565-006 20.03 .0735" — 1/2" 1-3/4" 20-565-097 29.51 .1155" — 5/8" 2-1/4" 20-565-186 36.62
.0300" — 1/4" 1-1/2" 20-565-007 26.91 .0740" — 1/2" 1-3/4" 20-565-098 29.51 .1160" #32 5/8" 2-1/4" 20-565-187 26.28
.0310" #68 1/4" 1-1/2" 20-565-008 20.03 .0760" #48 1/2" 1-3/4" 20-565-102 27.98 .1165" — 5/8" 2-1/4" 20-565-188 36.62
.0312" — 1/4" 1-1/2" 20-565-009 22.31 .0770" — 1/2" 1-3/4" 20-565-104 29.51 .1175" — 5/8" 2-1/4" 20-565-190 36.62
.0315" — 1/4" 1-1/2" 20-565-010 29.60 .0780" — 1/2" 1-3/4" 20-565-106 26.83 .1181" 3.0mm 5/8" 2-1/4" 20-565-192 26.28
.0320" #67 1/4" 1-1/2" 20-565-011 22.04 .0781" 5/64" 1/2" 1-3/4" 20-565-107 19.94 .1185" — 5/8" 2-1/4" 20-565-193 33.29
.0325" — 1/4" 1-1/2" 20-565-012 29.60 .0785" #47 1/2" 1-3/4" 20-565-108 27.98 .1190" — 5/8" 2-1/4" 20-565-194 36.62
.0330" #66 1/4" 1-1/2" 20-565-013 22.04 .0787" 2.0mm 1/2" 1-3/4" 20-565-109 22.95 .1195" — 5/8" 2-1/4" 20-565-195 36.62
.0335" — 1/4" 1-1/2" 20-565-014 29.60 .0790" — 1/2" 1-3/4" 20-565-110 29.94 .1200" #31 5/8" 2-1/4" 20-565-196 28.91
.0350" #65 1/4" 1-1/2" 20-565-017 22.04 .0795" — 1/2" 1-3/4" 20-565-111 29.94 .1205" — 5/8" 2-1/4" 20-565-197 36.62
.0360" #64 1/4" 1-1/2" 20-565-019 22.04 .0800" — 1/2" 1-3/4" 20-565-112 29.94 .1225" — 5/8" 2-1/4" 20-565-201 36.62
.0365" — 1/4" 1-1/2" 20-565-020 29.60 .0805" — 1/2" 1-3/4" 20-565-113 32.94 .1230" D/P 5/8" 2-1/4" 20-565-202 36.62
.0370" #63 1/4" 1-1/2" 20-565-021 20.03 .0810" #46 1/2" 1-3/4" 20-565-114 25.43 .1235" — 5/8" 2-1/4" 20-565-203 36.62
.0375" — 1/4" 1-1/2" 20-565-022 29.60 .0815" — 1/2" 2" 20-565-115 29.96 .1240" U/S 5/8" 2-1/4" 20-565-204 33.29
.0380" #62 1/4" 1-1/2" 20-565-023 22.04 .0820" #45 1/2" 2" 20-565-116 26.03 .1245" — 5/8" 2-1/4" 20-565-205 33.29
.0390" #61 1/4" 1-1/2" 20-565-025 20.03 .0825" — 1/2" 2" 20-565-117 29.96 .1247" D/P 5/8" 2-1/4" 20-565-206 33.29
.0394" 1.0mm 1/4" 1-1/2" 20-565-026 20.03 .0840" — 1/2" 2" 20-565-120 32.96 .1250" — 5/8" 2-1/4" 20-565-207 25.01
.0400" #60 1/4" 1-1/2" 20-565-028 22.04 .0850" — 1/2" 2" 20-565-122 32.96 .1255" — 5/8" 2-1/4" 20-565-208 33.29
.0410" #59 1/4" 1-1/2" 20-565-030 22.04 .0855" — 1/2" 2" 20-565-123 29.96 .1260" O/S 5/8" 2-1/4" 20-565-209 33.29
.0415" — 1/4" 1-1/2" 20-565-031 29.60 .0860" #44 1/2" 2" 20-565-124 28.63 .1265" — 5/8" 2-1/4" 20-565-210 33.29
.0420" #58 3/8" 1-1/2" 20-565-032 22.04 .0870" — 1/2" 2" 20-565-126 29.96 .1270" — 5/8" 2-1/4" 20-565-211 36.62
.0425" — 3/8" 1-1/2" 20-565-033 29.60 .0880" — 1/2" 2" 20-565-128 32.96 .1275" — 5/8" 2-1/4" 20-565-212 33.29
.0430" #57 3/8" 1-1/2" 20-565-034 20.03 .0890" #43 1/2" 2" 20-565-130 26.03 .1280" — 5/8" 2-1/4" 20-565-213 33.29
.0455" — 3/8" 1-1/2" 20-565-039 26.91 .0895" — 1/2" 2" 20-565-131 30.65 .1285" #30 5/8" 2-1/4" 20-565-214 26.28
.0465" #56 3/8" 1-1/2" 20-565-041 22.04 .0900" — 1/2" 2" 20-565-132 33.72 .1290" — 5/8" 2-1/4" 20-565-215 36.79
.0469" 3/64" 3/8" 1-1/2" 20-565-042 22.04 .0915" — 1/2" 2" 20-565-135 33.72 .1300" — 5/8" 2-1/4" 20-565-217 36.79
.0470" — 3/8" 1-1/2" 20-565-043 26.06 .0925" — 1/2" 2" 20-565-137 30.65 .1305" — 3/4" 2-1/2" 20-565-218 40.47
.0475" — 3/8" 1-1/2" 20-565-044 26.06 .0930" — 1/2" 2" 20-565-138 33.72 .1310" — 3/4" 2-1/2" 20-565-219 36.79
.0480" — 3/8" 1-1/2" 20-565-045 28.67 .0935" #42 1/2" 2" 20-565-139 26.03 .1320" — 3/4" 2-1/2" 20-565-221 40.47
.0500" — 3/8" 1-1/2" 20-565-049 28.67 .0938" 3/32" 1/2" 2" 20-565-140 24.36 .1325" — 3/4" 2-1/2" 20-565-222 36.79
.0505" — 3/8" 1-1/2" 20-565-050 28.67 .0940" — 1/2" 2" 20-565-141 30.65 .1330" — 3/4" 2-1/2" 20-565-223 40.47
.0520" #55 3/8" 1-1/2" 20-565-053 20.03 .0945" — 1/2" 2" 20-565-142 30.65 .1340" — 3/4" 2-1/2" 20-565-225 40.47
.0540" — 3/8" 1-1/2" 20-565-057 28.67 .0950" — 1/2" 2" 20-565-143 30.65 .1345" — 3/4" 2-1/2" 20-565-226 40.47
.0550" #54 3/8" 1-1/2" 20-565-059 22.04 .0955" — 1/2" 2" 20-565-144 30.65 .1350" — 3/4" 2-1/2" 20-565-227 36.79
.0555" — 3/8" 1-1/2" 20-565-060 28.67 .0960" #41 1/2" 2" 20-565-145 26.03 .1360" #29 3/4" 2-1/2" 20-565-229 34.82
.0560" — 3/8" 1-1/2" 20-565-061 26.06 .0965" — 1/2" 2" 20-565-146 33.72 .1370" — 3/4" 2-1/2" 20-565-231 40.47
.0570" — 3/8" 1-1/2" 20-565-063 28.67 .0970" — 5/8" 2-1/4" 20-565-147 34.05 .1378" 3.5mm 3/4" 2-1/2" 20-565-233 32.57
.0595" #53 3/8" 1-1/2" 20-565-069 22.04 .0975" — 5/8" 2-1/4" 20-565-148 34.47 .1400" — 3/4" 2-1/2" 20-565-238 40.47
.0600" — 3/8" 1-1/2" 20-565-070 28.67 .0980" #40 5/8" 2-1/4" 20-565-149 28.91 .1406" 9/64" 3/4" 2-1/2" 20-565-240 30.61
.0605" — 3/8" 1-1/2" 20-565-071 26.06 .0984" 2.5mm 5/8" 2-1/4" 20-565-150 26.28 .1415" — 3/4" 2-1/2" 20-565-242 36.79
.0610" — 3/8" 1-1/2" 20-565-072 28.67 .0995" #39 5/8" 2-1/4" 20-565-153 26.28 .1420" — 3/4" 2-1/2" 20-565-243 40.47
.0620" — 3/8" 1-1/2" 20-565-074 26.06 .1000" — 5/8" 2-1/4" 20-565-154 31.34 .1440" #27 3/4" 2-1/2" 20-565-247 34.82
.0625" 1/16" 3/8" 1-1/2" 20-565-075 19.34 .1005" — 5/8" 2-1/4" 20-565-155 34.47 .1455" — 3/4" 2-1/2" 20-565-250 40.47
.0630" — 3/8" 1-1/2" 20-565-076 26.06 .1015" #38 5/8" 2-1/4" 20-565-157 26.28 .1470" #26 3/4" 2-1/2" 20-565-253 34.82
.0635" #52 3/8" 1-1/2" 20-565-077 22.04 .1020" — 5/8" 2-1/4" 20-565-158 34.47 .1495" #25 3/4" 2-1/2" 20-565-258 34.82
.0640" — 3/8" 1-1/2" 20-565-078 26.84 .1025" — 5/8" 2-1/4" 20-565-159 31.34 .1505" — 3/4" 2-1/2" 20-565-260 36.79
.0645" — 3/8" 1-1/2" 20-565-079 29.52 .1030" — 5/8" 2-1/4" 20-565-160 34.47 .1520" #24 3/4" 2-1/2" 20-565-264 34.82
.0650" — 3/8" 1-1/2" 20-565-080 26.84 .1035" — 5/8" 2-1/4" 20-565-161 34.47 .1540" #23 3/4" 2-1/2" 20-565-268 34.82
.0655" — 1/2" 1-3/4" 20-565-081 26.83 .1040" #37 5/8" 2-1/4" 20-565-162 28.91 .1555" — 3/4" 2-1/2" 20-565-272 36.79
.0660" — 1/2" 1-3/4" 20-565-082 26.83 .1050" — 5/8" 2-1/4" 20-565-164 34.47 .1560" — 3/4" 2-1/2" 20-565-273 36.79
.0665" — 1/2" 1-3/4" 20-565-083 29.51 .1060" — 5/8" 2-1/4" 20-565-166 34.47 .1562" 5/32" 3/4" 2-1/2" 20-565-274 28.26
.0670" #51 1/2" 1-3/4" 20-565-084 25.43 .1065" #36 5/8" 2-1/4" 20-565-167 28.91 .1565" — 3/4" 2-1/2" 20-565-275 40.47
.0675" — 1/2" 1-3/4" 20-565-085 26.83 .1075" — 5/8" 2-1/4" 20-565-169 34.47 .1570" #22 3/4" 2-1/2" 20-565-276 31.65
.0680" — 1/2" 1-3/4" 20-565-086 26.83 .1085" — 5/8" 2-1/4" 20-565-171 34.47 .1575" 4.0mm 3/4" 2-1/2" 20-565-277 31.65
.0685" — 1/2" 1-3/4" 20-565-087 26.83 .1094" 7/64" 5/8" 2-1/4" 20-565-173 24.18 .1580" — 3/4" 2-1/2" 20-565-278 40.47
.0690" — 1/2" 1-3/4" 20-565-088 26.83 .1100" #35 5/8" 2-1/4" 20-565-175 28.91 .1585" — 3/4" 2-1/2" 20-565-279 40.47
.0695" — 1/2" 1-3/4" 20-565-089 29.51 .1105" — 5/8" 2-1/4" 20-565-176 36.62 .1590" #21 3/4" 2-1/2" 20-565-280 33.89
.0700" #50 1/2" 1-3/4" 20-565-090 27.98 .1110" #34 5/8" 2-1/4" 20-565-177 28.91 .1595" — 3/4" 2-1/2" 20-565-281 45.15
.0710" — 1/2" 1-3/4" 20-565-092 29.51 .1115" — 5/8" 2-1/4" 20-565-178 33.29 .1600" — 3/4" 2-1/2" 20-565-282 41.05
.0720" — 1/2" 1-3/4" 20-565-094 26.83 .1120" — 5/8" 2-1/4" 20-565-179 36.62 CONTINUED ON NEXT PAGE.
