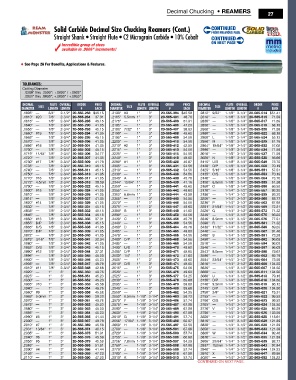

Page 29 - All Industrial Tool Supply | General Catalog

Decimal Chucking • REAMERS
27

Solid Carbide Decimal Size Chucking Reamers (Cont.)
Straight Shank • Straight Flute • C2 Micrograin Carbide • 10% Cobalt

Incredible group of sizes
available in .0005" increments!

♦ See Page 26 For Benefits, Applications & Features.

ToleRanCeS:
Cutting Diameter
.0280" thru .2500": +.0000" / +.0002"
.2501" thru .5000": +.0000" / +.0003"
DeCimal FluTe oveRall oRDeR PRiCe DeCimal FluTe oveRall oRDeR PRiCe DeCimal FluTe oveRall oRDeR PRiCe
DiameTeR Size lengTh lengTh # eaCh DiameTeR Size lengTh lengTh # eaCh DiameTeR Size lengTh lengTh # eaCh
.1605" — 3/4" 2-1/2" 20-565-283 $45.15 .2130" #3 1" 3" 20-565-394 $45.58 .2812" 9/32" 1-1/8" 3-1/4" 20-565-514 $51.41
.1610" #20 7/8" 2-3/4" 20-565-284 37.31 .2165" 5.5mm 1" 3" 20-565-401 48.76 .2818" — 1-1/8" 3-1/4" 20-565-515 71.59
.1615" — 7/8" 2-3/4" 20-565-285 45.15 .2175" — 1" 3" 20-565-403 51.91 .2830" — 1-1/8" 3-1/4" 20-565-517 71.59
.1640" — 7/8" 2-3/4" 20-565-290 41.05 .2185" — 1" 3" 20-565-406 47.20 .2850" — 1-1/8" 3-1/4" 20-565-519 68.18
.1655" — 7/8" 2-3/4" 20-565-293 45.15 .2188" 7/32" 1" 3" 20-565-407 38.03 .2860" — 1-1/8" 3-1/4" 20-565-520 71.59
.1660" #19 7/8" 2-3/4" 20-565-294 41.05 .2190" — 1" 3" 20-565-408 49.60 .2880" — 1-1/8" 3-1/4" 20-565-522 68.18
.1665" — 7/8" 2-3/4" 20-565-295 45.15 .2195" — 1" 3" 20-565-409 54.56 .2900" L 1-1/8" 3-1/4" 20-565-524 55.12
.1670" — 7/8" 2-3/4" 20-565-296 41.05 .2200" — 1" 3" 20-565-410 54.56 .2950" M 1-1/8" 3-1/4" 20-565-529 61.76
.1695" #18 7/8" 2-3/4" 20-565-301 41.05 .2210" #2 1" 3" 20-565-412 42.55 .2964" 19/64" 1-1/8" 3-1/4" 20-565-532 57.02
.1700" — 7/8" 2-3/4" 20-565-302 45.15 .2215" — 1" 3" 20-565-413 54.56 .2980" — 1-1/8" 3-1/4" 20-565-534 71.59
.1719" 11/64" 7/8" 2-3/4" 20-565-306 34.77 .2225" — 1" 3" 20-565-415 54.56 .3010" — 1-1/8" 3-1/4" 20-565-537 71.59
.1720" — 7/8" 2-3/4" 20-565-307 41.05 .2240" — 1" 3" 20-565-418 49.60 .3020" N 1-1/8" 3-1/4" 20-565-538 56.66
.1730" #17 7/8" 2-3/4" 20-565-309 41.76 .2280" #1 1" 3" 20-565-426 45.87 .3115" U/S 1-1/8" 3-1/4" 20-565-549 73.70
.1735" — 7/8" 2-3/4" 20-565-310 45.15 .2305" — 1" 3" 20-565-431 54.56 .3120" D/P 1-1/8" 3-1/4" 20-565-550 70.19
.1740" — 7/8" 2-3/4" 20-565-311 45.15 .2310" — 1" 3" 20-565-432 54.56 .3125" 5/16" 1-1/8" 3-1/4" 20-565-551 57.51
.1750" — 7/8" 2-3/4" 20-565-313 41.05 .2330" — 1" 3" 20-565-436 54.56 .3135" O/S 1-1/8" 3-1/4" 20-565-553 70.19
.1770" #16 7/8" 2-3/4" 20-565-317 41.05 .2340" A 1" 3" 20-565-438 45.76 .3140" — 1-1/8" 3-1/4" 20-565-554 73.70
.1772" 4.5mm 7/8" 2-3/4" 20-565-318 38.59 .2344" 15/64" 1" 3" 20-565-439 41.16 .3150" 8.0mm 1-1/8" 3-1/4" 20-565-555 61.38
.1790" — 7/8" 2-3/4" 20-565-322 45.15 .2350" — 1" 3" 20-565-441 49.60 .3160" O 1-1/8" 3-1/4" 20-565-556 66.52
.1800" #15 7/8" 2-3/4" 20-565-324 41.05 .2355" — 1" 3" 20-565-442 49.60 .3170" — 1-1/4" 3-1/2" 20-565-557 93.20
.1810" — 7/8" 2-3/4" 20-565-326 41.05 .2362" 6.0mm 1" 3" 20-565-444 43.08 .3190" — 1-1/4" 3-1/2" 20-565-559 93.20
.1814" — 7/8" 2-3/4" 20-565-327 41.05 .2365" — 1" 3" 20-565-445 54.56 .3200" — 1-1/4" 3-1/2" 20-565-560 88.77
.1820" #14 7/8" 2-3/4" 20-565-329 41.05 .2370" — 1" 3" 20-565-446 54.56 .3230" P 1-1/4" 3-1/2" 20-565-563 67.92
.1830" — 7/8" 2-3/4" 20-565-331 45.15 .2375" — 1" 3" 20-565-447 49.60 .3281" 21/64" 1-1/4" 3-1/2" 20-565-569 72.21
.1835" — 7/8" 2-3/4" 20-565-332 45.15 .2380" B 1" 3" 20-565-448 41.60 .3320" Q 1-1/4" 3-1/2" 20-565-573 71.32
.1845" — 7/8" 2-3/4" 20-565-334 45.15 .2390" — 1" 3" 20-565-450 54.56 .3340" — 1-1/4" 3-1/2" 20-565-575 93.20
.1850" #13 7/8" 2-3/4" 20-565-335 37.31 .2420" C 1" 3" 20-565-456 45.76 .3346" 8.5mm 1-1/4" 3-1/2" 20-565-576 77.51
.1855" D/P 7/8" 2-3/4" 20-565-336 45.15 .2440" — 1" 3" 20-565-460 54.56 .3390" R 1-1/4" 3-1/2" 20-565-581 71.32
.1865" U/S 7/8" 2-3/4" 20-565-338 41.05 .2460" D 1" 3" 20-565-464 45.76 .3438" 11/32" 1-1/4" 3-1/2" 20-565-586 69.20
.1870" D/P 7/8" 2-3/4" 20-565-339 41.05 .2465" — 1" 3" 20-565-465 49.60 .3440" — 1-1/4" 3-1/2" 20-565-587 91.46
.1872" — 7/8" 2-3/4" 20-565-340 41.05 .2470" — 1" 3" 20-565-466 54.56 .3480" S 1-1/4" 3-1/2" 20-565-591 73.28
.1875" 3/16" 7/8" 2-3/4" 20-565-341 32.04 .2480" D/P 1" 3" 20-565-468 54.56 .3490" — 1-1/4" 3-1/2" 20-565-592 96.03
.1880" — 7/8" 2-3/4" 20-565-342 41.05 .2485" — 1" 3" 20-565-469 54.56 .3510" — 1-1/4" 3-1/2" 20-565-594 96.03
.1885" O/S 7/8" 2-3/4" 20-565-343 45.15 .2490" U/S 1" 3" 20-565-470 49.60 .3540" — 1-1/4" 3-1/2" 20-565-597 96.03
.1890" #12 7/8" 2-3/4" 20-565-344 37.31 .2495" D/P 1" 3" 20-565-471 49.60 .3543" 9.0mm 1-1/4" 3-1/2" 20-565-598 79.67
.1895" — 7/8" 2-3/4" 20-565-345 45.23 .2500" 1/4" 1" 3" 20-565-472 41.60 .3580" — 1-1/4" 3-1/2" 20-565-602 69.79
.1900" — 7/8" 2-3/4" 20-565-346 45.23 .2505" — 1" 3" 20-565-473 49.60 .3594" 23/64" 1-1/4" 3-1/2" 20-565-604 73.58
.1905" — 7/8" 2-3/4" 20-565-347 49.76 .2510" O/S 1" 3" 20-565-474 49.60 .3610" — 1-1/4" 3-1/2" 20-565-606 104.50
.1910" #11 7/8" 2-3/4" 20-565-348 42.68 .2515" — 1" 3" 20-565-475 54.56 .3620" — 1-1/4" 3-1/2" 20-565-607 104.50
.1920" — 1" 3" 20-565-350 49.76 .2520" — 1" 3" 20-565-476 49.60 .3660" — 1-1/4" 3-1/2" 20-565-611 104.50
.1925" — 1" 3" 20-565-351 45.23 .2525" — 1" 3" 20-565-477 54.25 .3680" U 1-1/4" 3-1/2" 20-565-613 79.16
.1930" — 1" 3" 20-565-352 45.23 .2530" — 1" 3" 20-565-478 59.68 .3730" D/P 1-1/4" 3-1/2" 20-565-618 104.50
.1935" #10 1" 3" 20-565-353 45.58 .2535" — 1" 3" 20-565-479 59.68 .3740" 9.5mm 1-1/4" 3-1/2" 20-565-619 86.12
.1940" — 1" 3" 20-565-354 49.76 .2540" — 1" 3" 20-565-480 59.68 .3745" D/P 1-1/4" 3-1/2" 20-565-620 104.50
.1960" #9 1" 3" 20-565-358 45.58 .2550" — 1" 3" 20-565-482 54.25 .3750" 3/8" 1-1/4" 3-1/2" 20-565-621 75.31
.1969" 5.0mm 1" 3" 20-565-360 39.20 .2559" 6.5mm 1-1/8" 3-1/4" 20-565-483 59.72 .3755" — 1-1/4" 3-1/2" 20-565-622 99.52
.1970" — 1" 3" 20-565-361 49.76 .2570" F 1-1/8" 3-1/4" 20-565-486 57.74 .3760" O/S 1-1/4" 3-1/2" 20-565-623 99.52
.1975" — 1" 3" 20-565-362 45.23 .2575" — 1-1/8" 3-1/4" 20-565-487 67.08 .3765" — 1-1/4" 3-1/2" 20-565-624 104.50
.1980" — 1" 3" 20-565-363 45.23 .2590" — 1-1/8" 3-1/4" 20-565-489 67.08 .3770" V 1-1/4" 3-1/2" 20-565-625 85.28
.1985" — 1" 3" 20-565-364 45.23 .2600" — 1-1/8" 3-1/4" 20-565-490 67.08 .3780" — 1-1/4" 3-1/2" 20-565-626 103.56
.1990" #8 1" 3" 20-565-365 41.44 .2610" G 1-1/8" 3-1/4" 20-565-491 57.74 .3800" — 1-1/4" 3-1/2" 20-565-628 115.61
.2000" — 1" 3" 20-565-367 49.76 .2656" 17/64" 1-1/8" 3-1/4" 20-565-496 50.97 .3810" — 1-1/4" 3-1/2" 20-565-629 121.39
.2010" #7 1" 3" 20-565-369 45.58 .2660" H 1-1/8" 3-1/4" 20-565-497 52.50 .3820" — 1-1/4" 3-1/2" 20-565-630 121.39
.2031" 13/64" 1" 3" 20-565-374 40.15 .2700" — 1-1/8" 3-1/4" 20-565-501 67.08 .3850" — 1-1/4" 3-1/2" 20-565-633 121.39
.2035" — 1" 3" 20-565-375 51.91 .2720" I 1-1/8" 3-1/4" 20-565-503 57.74 .3860" W 1-1/4" 3-1/2" 20-565-634 92.48
.2040" #6 1" 3" 20-565-376 45.58 .2750" — 1-1/8" 3-1/4" 20-565-506 60.98 .3870" — 1-1/4" 3-1/2" 20-565-635 121.39
.2055" #5 1" 3" 20-565-379 45.58 .2756" 7.0mm 1-1/8" 3-1/4" 20-565-507 54.29 .3906" 25/64" 1-1/4" 3-1/2" 20-565-639 92.77
.2085" — 1" 3" 20-565-385 51.91 .2760" — 1-1/8" 3-1/4" 20-565-508 67.08 .3937" 10.0mm 1-1/4" 3-1/2" 20-565-643 97.84
.2090" #4 1" 3" 20-565-386 41.44 .2770" J 1-1/8" 3-1/4" 20-565-509 57.74 .3940" — 1-1/4" 3-1/2" 20-565-644 124.22
.2105" — 1" 3" 20-565-389 47.20 .2780" — 1-1/8" 3-1/4" 20-565-510 67.08 .3970" X 1-1/4" 3-1/2" 20-565-647 89.95
.2110" — 1" 3" 20-565-390 47.20 .2810" K 1-1/8" 3-1/4" 20-565-513 57.74 .4020" — 1-1/4" 3-1/2" 20-565-652 124.22
CONTINUED ON NEXT PAGE.
