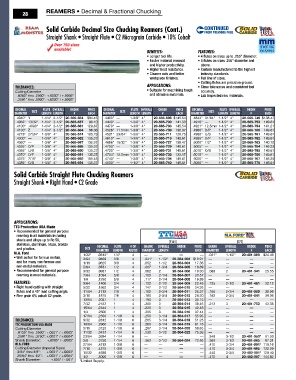

REAMERS • Decimal & Fractional Chucking
28

Solid Carbide Decimal Size Chucking Reamers (Cont.)
Straight Shank • Straight Flute • C2 Micrograin Carbide • 10% Cobalt

Over 750 sizes
available!
Benefits: feAtures:
• Longer tool life. • 4 flutes on sizes up to .255” diameter.
• Faster material removal • 6 flutes on sizes .255” diameter and
and higher productivity. above.
• Higher heat resistance. • Custom manufactured to the highest
• Cleaner cuts and better industry standards.
workpiece finishes. • Full line of sizes.
• Cutting flutes are precision ground.
ToleRanCeS: APPLiCAtiOns: • Close tolerances and consistent tool
Cutting Diameter • Suitable for machining tough accuracy.
.0280" thru .2500": +.0000" / +.0002" and abrasive materials. • Lab inspected raw materials.
.2501" thru .5000": +.0000" / +.0003"

DeCiMal FluTe oveRall oRDeR PRiCe DeCiMal FluTe oveRall oRDeR PRiCe DeCiMal FluTe oveRall oRDeR PRiCe
DiaMeTeR Size lengTh lengTh # eaCh DiaMeTeR Size lengTh lengTh # eaCh DiaMeTeR Size lengTh lengTh # eaCh
.4040" Y 1-1/4" 3-1/2" 20-565-654 $94.45 .4400" — 1-3/8" 4" 20-565-696 $145.54 .4844" 31/64" 1-1/2" 4" 20-565-746 $138.47
.4062" 13/32" 1-1/4" 3-1/2" 20-565-657 90.10 .4440" — 1-3/8" 4" 20-565-700 141.30 .4910" — 1-1/2" 4" 20-565-753 149.61
.4100" .4090" 1-1/4" 3-1/2" 20-565-661 129.87 .4470" — 1-3/8" 4" 20-565-703 145.54 .4921" 12.5mm 1-1/2" 4" 20-565-754 141.21
.4130" Z 1-1/4" 3-1/2" 20-565-664 98.36 .4528" 11.5mm 1-3/8" 4" 20-565-709 136.37 .4980" D/P 1-1/2" 4" 20-565-760 149.61
.4219" 27/34" 1-3/8" 4" 20-565-674 105.79 .4531" 29/64" 1-3/8" 4" 20-565-711 129.75 .4990" U/S 1-1/2" 4" 20-565-761 149.61
.4300" — 1-3/8" 4" 20-565-682 135.37 .4610" — 1-3/8" 4" 20-565-719 149.61 .4995" D/P 1-1/2" 4" 20-565-762 149.61
.4350" — 1-3/8" 4" 20-565-687 135.37 .4688" 15/32" 1-3/8" 4" 20-565-727 138.47 .5000" 1/2" 1-1/2" 4" 20-565-763 140.70
.4355" D/P 1-3/8" 4" 20-565-688 135.37 .4700" — 1-3/8" 4" 20-565-729 149.61 .5005" — 1-1/2" 4" 20-565-764 145.25
.4365" U/S 1-3/8" 4" 20-565-690 135.37 .4720" — 1-3/8" 4" 20-565-731 149.61 .5010" O/S 1-1/2" 4" 20-565-765 149.61
.4370" D/P 1-3/8" 4" 20-565-691 135.37 .4724" 12.0mm 1-3/8" 4" 20-565-732 132.17 .5015" — 1-1/2" 4" 20-565-766 149.61
.4375" 7/16" 1-3/8" 4" 20-565-692 105.48 .4740" — 1-3/8" 4" 20-565-734 149.61 .5020" — 1-1/2" 4" 20-565-767 145.25
.4385" O/S 1-3/8" 4" 20-565-694 135.37 .4800" — 1-1/2" 4" 20-565-740 149.61 .5050" — 1-1/2" 4" 20-565-770 149.61

Solid Carbide Straight Flute Chucking Reamers
Straight Shank • Right Hand • C2 Grade

APPLiCAtiOns:
TTC Production USA Made
• Recommended for general purpose
reaming in all materials including
steels and alloys up to Rc 50, [1564] [272]
stainless, aluminum, brass, bronze DeCiMal FluTe # oF Shank oveRall oRDeR PRiCe Shank oveRall oRDeR PRiCe
and plastics. Size DiaMeTeR lengTh FluTeS DiaMeTeR lengTh # eaCh DiaMeTeR lengTh # eaCh
M.A. Ford 1/32" .0312" 1/4" 4 — — — — .031" 1-1/2" 20-401-093 $24.46
• Well suited for ferrous metals, 3/64 .0469 3/8 4 .041" 1-1/2" 20-564-003 $18.91 — — — —
and for many non-ferrous and 1/16 .0625 3/8 4 .052 1-1/2 20-564-004 17.38 — — — —
non-metal materials. 5/64 .0781 1/2 4 .067 1-3/4 20-564-005 18.89 — — — —
• Recommended for general purpose 3/32 .0937 1/2 4 .082 2 20-564-006 19.30 .088 2 20-401-341 25.55
reaming in most materials. 7/64 .1094 5/8 4 .100 2-1/4 20-564-007 20.57 — — — —
1/8 .1250 5/8 4 .117 2-1/4 20-564-008 19.89 — — — —
feAtures: 9/64 .1406 3/4 4 .132 2-1/2 20-564-009 22.46 .135 2-1/2 20-401-481 32.12
• Right hand cutting with straight 5/32 .1562 3/4 4 .147 2-1/2 20-564-010 24.26 — — — —
flutes and a 45° lead cutting angle. 11/64 .1719 7/8 4 .162 2-3/4 20-564-011 26.37 .166 2-3/4 20-401-589 38.96
• Fine grain 6% cobalt C2 grade. 3/16 .1875 7/8 4 .180 2-3/4 20-564-012 28.20 .182 2-3/4 20-401-641 39.36
13/64 .2031 1 4 .190 3 20-564-013 35.15 — — — —
7/32 .2187 1 4 .205 3 20-564-014 39.46 .213 3 20-401-753 43.05
15/64 .2344 1 4 .220 3 20-564-015 42.46 — — — —
1/4 .2500 1 4 .235 3 20-564-016 37.44 — — — —
17/64 .2656 1-1/8 6 .250 3-1/4 20-564-017 55.95 — — — —
ToleRanCeS: 9/32 .2812 1-1/8 6 .265 3-1/4 20-564-018 51.23 — — — —
TTC PRoDuCTion uSa MaDe 19/64 .2960 1-1/8 6 .280 3-1/4 20-564-019 61.16 — — — —
Cutting Diameter 5/16 .3125 1-1/8 6 .297 3-1/4 20-564-020 58.65 — — — —
.0135" thru .2500": +.0001" / +.0003" 11/32 .3437 1-1/4 6 .330 3-1/2 20-564-022 75.36 — — — —
.2501" thru .3750": +.0001" / +.0004" 23/64 .3594 1-1/4 6 — — — — .348 3-1/2 20-401-953* 91.20
Shank Diameter: +.0005" / -.0005" 3/8 .3750 1-1/4 6 .362 3-1/2 20-564-024 72.56 .363 3-1/2 20-401-965 87.31
M.a. FoRD 27/64 .4219 1-3/8 6 — — — — .410 3-3/4 20-401-991* 119.16
Cutting Diameter (Imperial Sizes) 7/16 .4375 1-3/8 6 — — — — .410 3-3/4 20-401-995 122.29
3/64" thru 3/8": +.0001" / +.0003" 15/32 .4688 1-3/8 6 — — — — .440 3-3/4 20-402-001* 129.40
25/64" thru 1/2": +.0001" / +.0004" 1/2 .5000 1-3/8 6 — — — — .470 4 20-402-007 144.82
Shank Diameter: +.000" / -.001" *Limited Supply.
