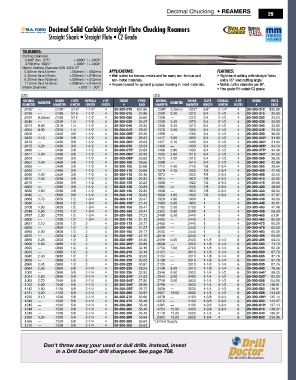

Page 31 - All Industrial Tool Supply | General Catalog

Decimal Chucking • REAMERS
29

Decimal Solid Carbide Straight Flute Chucking Reamers
Straight Shank • Straight Flute • C2 Grade

ToleRanCeS:
Cutting Diameter
.0190" thru .375": +.0000" / +.0003"
.3760 thru .5905": +.0001" / +.0004"
Metric Cutting Diameter DIN 1420 H7
0.50mm thru 3.0mm: +.004mm / +.008mm APPLICATIONS: FeATureS:
3.10mm thru 6.0mm: +.005mm / +.010mm • Well suited for ferrous metals and for many non-ferrous and • Right hand cutting with straight flutes
6.30mm thru 10.0mm: +.006mm / +.012mm non-metal materials. and a 45° lead cutting angle.
11.0mm thru 15.0mm: +.008mm / +.015mm • Recommended for general purpose reaming in most materials. • Metric cutter diameter per H7.
Shank Diameter: +.000" / -.001" • Fine grain 6% cobalt C2 grade.
[272] [272]
DeCimal Shank FluTe oveRall # oF oRDeR PRiCe DeCimal Shank FluTe oveRall # oF oRDeR PRiCe
DiameTeR DiameTeR DiameTeR lengTh lengTh FluTeS # eaCh DiameTeR DiameTeR DiameTeR lengTh lengTh FluTeS # eaCh
.0190" — .0190" 3/16" 1-1/2" 4 20-300-010 $37.86 .1280" 3.25mm .1200" 5/8" 2-1/4" 4 20-300-310 $33.80
.0195 — .0190 3/16 1-1/2 4 20-300-015 37.86 .1299 3.30 .1270 3/4 2-1/2 4 20-300-315 33.80
.0197 0.50mm .0190 3/16 1-1/2 4 20-300-020 36.05 .1300 — .1270 3/4 2-1/2 4 20-300-320 35.63
.0245 — .0240 1/4 1-1/2 4 20-300-030 34.57 .1339 3.40 .1270 3/4 2-1/2 4 20-300-335 33.80
.0315 0.80 .0310 1/4 1-1/2 4 20-300-040 29.30 .1358 3.45 .1270 3/4 2-1/2 4 20-300-340 33.80
.0354 0.90 .0350 1/4 1-1/2 4 20-300-045 28.25 .1378 3.50 .1350 3/4 2-1/2 4 20-300-345 31.42
.0405 — .0400 3/8 1-1/2 4 20-300-055* 26.36 .1390 — .1350 3/4 2-1/2 4 20-300-350 36.05
.0433 1.10 .0430 3/8 1-1/2 4 20-300-060 28.25 .1417 3.60 .1350 3/4 2-1/2 4 20-300-355* 31.69
.0470 — .0430 3/8 1-1/2 4 20-300-065* 26.63 .1457 3.70 .1430 3/4 2-1/2 4 20-300-360* 31.94
.0472 1.20 .0430 3/8 1-1/2 4 20-300-070 28.56 .1460 — .1430 3/4 2-1/2 4 20-300-365* 34.34
.0490 — .0430 3/8 1-1/2 4 20-300-075* 26.63 .1496 3.80 .1430 3/4 2-1/2 4 20-300-375* 34.48
.0511 1.30 .0430 3/8 1-1/2 4 20-300-085* 25.30 .1535 3.90 .1510 3/4 2-1/2 4 20-300-380* 34.22
.0530 — .0460 3/8 1-1/2 4 20-300-095* 26.63 .1575 4.00 .1510 3/4 2-1/2 4 20-300-385 36.55
.0551 1.40 .0460 3/8 1-1/2 4 20-300-100 28.56 .1580 — .1510 3/4 2-1/2 4 20-300-390 42.86
.0560 — .0460 3/8 1-1/2 4 20-300-105 30.06 .1772 4.50 .1740 7/8 2-3/4 4 20-300-395 39.84
.0580 — .0460 3/8 1-1/2 4 20-300-110 30.06 .1870 4.75 .1820 7/8 2-3/4 4 20-300-400 47.48
.0590 1.50 .0460 3/8 1-1/2 4 20-300-115 26.16 .1873 — .1820 7/8 2-3/4 4 20-300-405 45.55
.0610 1.55 .0580 3/8 1-1/2 4 20-300-120 29.30 .1874 — .1820 7/8 2-3/4 4 20-300-410 45.55
.0615 — .0580 3/8 1-1/2 4 20-300-125 30.83 .1880 — .1820 7/8 2-3/4 4 20-300-415 49.90
.0620 — .0580 3/8 1-1/2 4 20-300-130 30.83 .1885 — .1820 7/8 2-3/4 4 20-300-420 49.90
.0630 1.60 .0580 3/8 1-1/2 4 20-300-135 29.30 .1900 — .1820 7/8 2-3/4 4 20-300-430 50.34
.0640 — .0580 3/8 1-1/2 4 20-300-140 30.83 .1909 4.85 .1820 7/8 2-3/4 4 20-300-435 47.97
.0669 1.70 .0650 1/2 1-3/4 4 20-300-145 29.47 .1929 4.90 .1900 1 3 4 20-300-440 48.09
.0680 — .0650 1/2 1-3/4 4 20-300-150* 27.42 .1969 5.00 .1900 1 3 4 20-300-445 45.67
.0708 1.80 .0650 1/2 1-3/4 4 20-300-155 29.47 .2165 5.50 .2130 1 3 4 20-300-450 47.48
.0748 1.90 .0730 1/2 1-3/4 4 20-300-160 29.47 .2362 6.00 .2290 1 3 4 20-300-455 56.50
.0787 2.00 .0730 1/2 1-3/4 4 20-300-165 27.23 .2480 6.30 .2440 1 3 4 20-300-460 61.91
.0800 — .0730 1/2 1-3/4 4 20-300-170 31.12 .2495 — .2440 1 3 4 20-300-465 65.09
.0827 2.10 .0800 1/2 2 4 20-300-175 29.77 .2498 — .2440 1 3 4 20-300-470 65.09
.0830 — .0800 1/2 2 4 20-300-180 31.27 .2499 — .2440 1 3 4 20-300-475 65.09
.0866 2.20 .0800 1/2 2 4 20-300-185 29.77 .2505 — .2440 1 3 4 20-300-480 65.09
.0870 — .0800 1/2 2 4 20-300-190* 27.70 .2510 — .2440 1 3 4 20-300-485 65.09
.0886 2.25 .0800 1/2 2 4 20-300-195* 26.36 .2559 6.50 .2520 1-1/8 3-1/4 6 20-300-495 68.24
.0906 2.30 .0880 1/2 2 4 20-300-200* 26.89 .2600 — .2520 1-1/8 3-1/4 6 20-300-500 71.70
.0920 — .0880 1/2 2 4 20-300-205 32.16 .2756 7.00 .2700 1-1/8 3-1/4 6 20-300-505 62.38
.0930 — .0880 1/2 2 4 20-300-210 32.16 .3123 — .3010 1-1/8 3-1/4 6 20-300-520 87.76
.0945 2.40 .0880 1/2 2 4 20-300-215 30.50 .3124 — .3010 1-1/8 3-1/4 6 20-300-525 87.76
.0950 — .0880 1/2 2 4 20-300-220 32.62 .3130 — .3010 1-1/8 3-1/4 6 20-300-530 87.76
.0965 2.45 .0880 1/2 2 4 20-300-225 30.97 .3135 — .3010 1-1/8 3-1/4 6 20-300-535 87.76
.0984 2.50 .0960 5/8 2-1/4 4 20-300-230 28.25 .3150 8.00 .3010 1-1/8 3-1/4 6 20-300-540 76.35
.1000 — .0960 5/8 2-1/4 4 20-300-235 32.92 .3346 8.50 .3320 1-1/4 3-1/2 6 20-300-545* 90.00
.1024 2.60 .0960 5/8 2-1/4 4 20-300-240* 27.83 .3543 9.00 .3480 1-1/4 3-1/2 6 20-300-550* 83.08
.1063 2.70 .1040 5/8 2-1/4 4 20-300-245* 27.95 .3740 9.50 .3630 1-1/4 3-1/2 6 20-300-555 104.89
.1102 2.80 .1040 5/8 2-1/4 4 20-300-250* 28.90 .3760 — .3630 1-1/4 3-1/2 6 20-300-575 130.91
.1142 2.90 .1120 5/8 2-1/4 4 20-300-255* 29.70 .3800 — .3630 1-1/4 3-1/2 6 20-300-580 130.91
.1181 3.00 .1120 5/8 2-1/4 4 20-300-260 30.97 .3937 10.00 .3800 1-1/4 3-1/2 6 20-300-585 131.05
.1220 3.10 .1200 5/8 2-1/4 4 20-300-270 33.66 .4370 — .4100 1-3/8 3-3/4 6 20-300-595* 125.14
.1240 — .1200 5/8 2-1/4 4 20-300-275 35.46 .4373 — .4100 1-3/8 3-3/4 6 20-300-600 141.27
.1245 — .1200 5/8 2-1/4 4 20-300-280 35.46 .4385 — .4100 1-3/8 3-3/4 6 20-300-610* 137.13
.1248 — .1200 5/8 2-1/4 4 20-300-285 35.46 .4724 12.00 .4400 1-3/8 3-3/4 6 20-300-615 146.07
.1249 — .1200 5/8 2-1/4 4 20-300-290 35.46 .5118 13.00 .5050 1-1/2 4 6 20-300-640 189.37
.1260 3.20 .1200 5/8 2-1/4 4 20-300-295 33.66 .5905 15.00 .5650 1-3/4 4 6 20-300-650 238.96
.1265 — .1200 5/8 2-1/4 4 20-300-300 35.63 *Limited Supply.
.1270 — .1200 5/8 2-1/4 4 20-300-305 35.63
