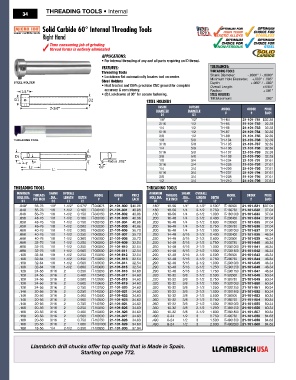

THREADING TOOLS • Internal
34

Solid Carbide 60° Internal Threading Tools
Right Hand

Time consuming job of grinding
thread forms is entirely eliminated
APPLICATIONS:
• For internal threading of any and all parts requiring an ID thread.
FeATureS: ToleranCeS:
Threading Tools ThreadIng ToolS
• Lockdown flat automatically locates tool on center. Shank Diameter: -.0001" / -.0003"
+.000" / .005"
Minimum Hole Diameter:
STEEL HOLDER Steel Holders Depth: +.050" / -.000"
• Heat treated and100% precision CNC ground for complete Overall Length: ±1/64"
accuracy & consistency. Radius: ±.001"
• (2) Lockdowns at 90° for secure fastening. STeel holderS
TIR Maximum: .002"
STeel holderS
InSIde ouTSIde
dIameTer dIameTer model order PrICe
eaCh
#
#
d1 d2
1/8" 1/2" TH-84 21-101-781 $32.39
3/16 1/2 TH-85 21-101-782 32.39
1/4 1/2 TH-86 21-101-783 32.39
5/16 1/2 TH-87 21-101-784 32.39
3/8 1/2 TH-88 21-101-785 32.39
THREADING TOOL 1/8 5/8 TH-104 21-101-786 32.39
3/16 5/8 TH-105 21-101-787 32.39
1/4 5/8 TH-106 21-101-788 32.39
5/16 5/8 TH-107 21-101-789 32.39
3/8 5/8 TH-108 21-101-790 32.39
1/8 3/4 TH-204 21-101-791 37.61
3/16 3/4 TH-205 21-101-792 37.61
1/4 3/4 TH-206 21-101-793 37.61
5/16 3/4 TH-207 21-101-794 37.61
3/8 3/4 TH-208 21-101-795 37.61
1/2 3/4 TH-210 21-101-796 37.61
ThreadIng ToolS ThreadIng ToolS
mInImum ThreadS Shank overall model order PrICe mInImum ThreadS Shank overall model order PrICe
hole dIa. Per InCh _dIa._ lengTh dePTh # # eaCh hole dIa. Per InCh _dIa._ lengTh dePTh # # eaCh
d1 d2 l1 l2 d1 d2 l1 l2
.040" 56-76 1/8" 1-1/2" 0.075" IT-040075 21-101-800 $40.96 .180" 18-56 1/4" 2-1/2" 0.500" IT-180500 21-101-831 $37.04
.040 56-76 1/8 1-1/2 0.100 IT-040100 21-101-801 40.96 .180 18-56 1/4 2-1/2 0.750 IT-180750 21-101-832 37.04
.040 56-76 1/8 1-1/2 0.150 IT-040150 21-101-802 40.96 .180 18-56 1/4 2-1/2 1.000 IT-1801000 21-101-833 37.04
.050 48-76 1/8 1-1/2 0.100 IT-050100 21-101-803 40.96 .200 16-40 1/4 2-1/2 0.400 IT-200400 21-101-834 37.04
.050 48-76 1/8 1-1/2 0.150 IT-050150 21-101-804 40.96 .200 16-40 1/4 2-1/2 0.600 IT-200600 21-101-835 37.04
.050 48-76 1/8 1-1/2 0.200 IT-050200 21-101-805 40.96 .200 16-40 1/4 2-1/2 0.750 IT-200750 21-101-836 37.04
.060 40-76 1/8 1-1/2 0.200 IT-060200 21-101-806 35.73 .200 16-40 1/4 2-1/2 1.000 IT-2001000 21-101-837 37.04
.060 40-76 1/8 1-1/2 0.250 IT-060250 21-101-807 35.73 .230 14-40 5/16 2-1/2 0.400 IT-230400 21-101-838 46.34
.060 40-76 1/8 1-1/2 0.300 IT-060300 21-101-808 35.73 .230 14-40 5/16 2-1/2 0.600 IT-230600 21-101-839 46.34
.080 32-76 1/8 1-1/2 0.250 IT-080250 21-101-809 32.54 .230 14-40 5/16 2-1/2 0.750 IT-230750 21-101-840 46.34
.080 32-76 1/8 1-1/2 0.350 IT-080350 21-101-810 32.54 .230 14-40 5/16 2-1/2 1.000 IT-2301000 21-101-841 46.34
.080 32-76 1/8 1-1/2 0.500 IT-080500 21-101-811 32.54 .230 14-40 5/16 2-1/2 1.500 IT-2301500 21-101-842 46.34
.100 32-64 1/8 1-1/2 0.250 IT-100250 21-101-812 32.54 .290 12-40 5/16 2-1/2 0.500 IT-290500 21-101-843 46.34
.100 32-64 1/8 1-1/2 0.350 IT-100350 21-101-813 32.54 .290 12-40 5/16 2-1/2 0.750 IT-290750 21-101-844 46.34
.100 32-64 1/8 1-1/2 0.500 IT-100500 21-101-814 32.54 .290 12-40 5/16 2-1/2 1.000 IT-2901000 21-101-845 46.34
.100 32-64 1/8 1-1/2 0.600 IT-100600 21-101-815 32.54 .290 12-40 5/16 2-1/2 1.250 IT-2901250 21-101-846 46.34
.120 24-56 3/16 2 0.250 IT-120250 21-101-816 34.63 .290 12-40 5/16 2-1/2 1.750 IT-2901750 21-101-847 46.34
.120 24-56 3/16 2 0.400 IT-120400 21-101-817 34.63 .320 10-32 3/8 2-1/2 0.500 IT-320500 21-101-848 60.34
.120 24-56 3/16 2 0.500 IT-120500 21-101-818 34.63 .320 10-32 3/8 2-1/2 0.750 IT-320750 21-101-849 60.34
.120 24-56 3/16 2 0.600 IT-120600 21-101-819 34.63 .320 10-32 3/8 2-1/2 1.000 IT-3201000 21-101-850 60.34
.120 24-56 3/16 2 0.750 IT-120750 21-101-820 34.63 .320 10-32 3/8 2-1/2 1.250 IT-3201250 21-101-851 60.34
.140 20-56 3/16 2 0.250 IT-140250 21-101-821 34.63 .320 10-32 3/8 2-1/2 1.800 IT-3201800 21-101-852 60.34
.140 20-56 3/16 2 0.400 IT-140400 21-101-822 34.63 .360 10-32 3/8 2-1/2 0.500 IT-360500 21-101-853 60.34
.140 20-56 3/16 2 0.500 IT-140500 21-101-823 34.63 .360 10-32 3/8 2-1/2 0.750 IT-360750 21-101-854 60.34
.140 20-56 3/16 2 0.750 IT-140750 21-101-824 34.63 .360 10-32 3/8 2-1/2 1.000 IT-3601000 21-101-855 60.34
.160 20-56 3/16 2 0.250 IT-160250 21-101-825 34.63 .360 10-32 3/8 2-1/2 1.250 IT-3601250 21-101-856 60.34
.160 20-56 3/16 2 0.400 IT-160400 21-101-826 34.63 .360 10-32 3/8 2-1/2 1.800 IT-3601800 21-101-857 60.34
.160 20-56 3/16 2 0.500 IT-160500 21-101-827 34.63 .490 8-24 1/2 3 0.750 IT-490750 21-101-858 84.63
.160 20-56 3/16 2 0.750 IT-160750 21-101-828 34.63 .490 8-24 1/2 3 1.500 IT-4901500 21-101-859 84.63
.160 20-56 3/16 2 1.000 IT-1601000 21-101-829 34.63 .490 8-24 1/2 3 2.000 IT-4902000 21-101-860 84.63
.180 18-56 1/4 2-1/2 0.350 IT-180350 21-101-830 37.04
