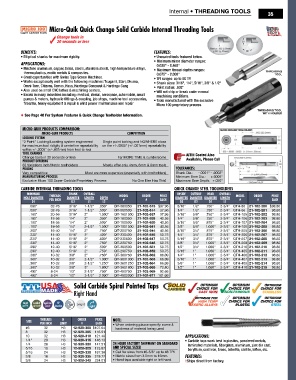

Page 37 - All Industrial Tool Supply | General Catalog

Internal • THREADING TOOLS
35

Micro-Quik Quick Change Solid Carbide Internal Threading Tools

Change tools in
30 seconds or less

Benefits: feAtures:
• Elliptical shanks for maximum rigidity. • Uncoated tools featured below.
• Minimum minor diameter ranges:
APPLiCAtiOns: 0.035" - 0.460"
• Machine aluminum, copper, brass, steels, stainless steels, high temperature alloys, • Maximum thread depths ranges:
thermoplastics, exotic metals & composites. 0.075" - 2.000" THREADING
TOOL
• Great opportunities with Swiss Type Screw Machines. • TPI ranges: up to 80 TPI
• Works exceptionally well with the following machines: Tsugami, Starr, Okuma, • Shank sizes: 3/16", 1/4", 5/16", 3/8" & 1/2"
Omni-Turn, Citizens, Tornos, Hass, Hardinge Conquest & Hardinge Gang • Point radius: .002"
• Also used on small CNC lathes & machining centers. • Will not chip or break under normal
• Excels in many industries including: medical, dental, aerospace, automobile, small machining conditions.
pumps & motors, hydraulic fittings & coupling, job shops, machine tool accessories, • Tools manufactured with the exclusive
firearms, heavy equipment & repair & wind power maintenance and repair Micro 100 proprietary process.
THREADING TOOL
♦ See Page 40 For System Features & Quick Change Toolholder Information. WITH HOLDER

MICro-QuIk ProduCTS CoMParISon:
MICro-QuIk ProduCTS CoMPeTITIon
loCkIng SySTeM
“2 Point” Locking/Locating system engineered Single point locking and NOWHERE close
for maximum tool ridigity & centerline repeatability on the +/-.0005" (+/-.001mm) repeatability
within +/-.0005" (+/-.001mm) from tool to tool
Tool ChangeS AlTiN Coated Also
Change tools in 30 seconds or less Far MORE TIME & cumbersome Available, Please Call
ProduCT offerIng
80 Variations Inch/Metric toolholders Mostly offer only 4mm, 6mm & 8mm tools
PrICIng ToleranCeS:
Very competitive Most are more expensive (especially with toolholders) Shank Dia.: -.0001" - .0002"
ManufaCTurIng ProCeSS Minimum Bore Dia.: ±.0005"
Exclusive Micro 100 Super Carbide Proprietary Process No One Else Has This! Maximum Bore Depth: +.050"
CarbIde InTernal ThreadIng ToolS QuICk Change STeel ToolholderS
MInIMuM Shank overall InSIde ouTSIde head overall
hole dIaMeTer ThreadS dIaMeTer lengTh dePTh Model order PrICe dIaMeTer dIaMeTer dIaMeTer lengTh Model order PrICe
Per InCh
#
#
eaCh
eaCh
#
#
d1 d2 l1 l2 d3 d2 d1 l1
.080" 32-76 3/16" 1-1/2" .350" QIT-080350 21-102-613 $37.96 3/16" 1/2" .750" 2-3/4" QTH-85 21-102-200 $98.80
.080" 32-76 3/16" 1-1/2" .500" QIT-080500 21-102-614 37.96 1/4" 1/2" .750" 2-3/4" QTH-86 21-102-201 98.80
.160" 20-56 3/16" 2" 1.000" QIT-1601000 21-102-637 37.96 3/16" 5/8" .750" 2-3/4" QTH-105 21-102-202 98.80
.180" 18-56 1/4" 2" .350" QIT-180350 21-102-638 40.56 1/4" 5/8" .750" 2-3/4" QTH-106 21-102-203 98.80
.180" 18-56 1/4" 2" .500" QIT-180500 21-102-639 40.56 5/16" 5/8" .875" 2-3/4" QTH-107 21-102-204 98.80
.180" 18-56 1/4" 2-1/2" 1.000" QIT-1801000 21-102-641 40.56 3/8" 5/8" 1.000" 2-3/4" QTH-108 21-102-205 98.80
.200" 16-40 1/4" 2" .750" QIT-200750 21-102-644 40.56 3/16" 3/4" .875" 2-3/4" QTH-205 21-102-206 98.80
.230" 14-40 5/16" 2" .400" QIT-230400 21-102-646 50.75 1/4" 3/4" .875" 2-3/4" QTH-206 21-102-207 98.80
.230" 14-40 5/16" 2" .600" QIT-230600 21-102-647 50.75 5/16" 3/4" .875" 2-3/4" QTH-207 21-102-208 98.80
.230" 14-40 5/16" 2" .750" QIT-230750 21-102-648 50.75 3/8" 3/4" 1.000" 2-3/4" QTH-208 21-102-209 98.80
.290" 12-40 5/16" 2" .500" QIT-290500 21-102-651 50.75 1/2" 3/4" 1.060" 2-3/4" QTH-210 21-102-210 98.80
.290" 12-40 5/16" 2" .750" QIT-290750 21-102-652 50.75 3/16" 1" 1.060" 2-3/4" QTH-405 21-102-211 98.80
.360" 10-32 3/8" 2" .750" QIT-360750 21-102-662 66.09 1/4" 1" 1.060" 2-3/4" QTH-406 21-102-212 98.80
.360" 10-32 3/8" 2-1/2" 1.000" QIT-3601000 21-102-663 66.09 5/16" 1" 1.060" 2-3/4" QTH-407 21-102-213 98.80
.360" 10-32 3/8" 2-1/2" 1.250" QIT-3601250 21-102-664 66.09 3/8" 1" 1.060" 2-3/4" QTH-408 21-102-214 98.80
.360" 10-32 3/8" 3" 1.800" QIT-3601800 21-102-665 72.80 1/2" 1" 1.060" 2-3/4" QTH-410 21-102-215 98.80
.490" 8-24 1/2" 2-1/2" .750" QIT-490750 21-102-669 92.66
.490" 8-24 1/2" 3-1/2" 2.000" QIT-4902000 21-102-671 101.09
Solid Carbide Spiral Pointed Taps
Right Hand

ThreadS h order PrICe noTe:
SIze
Per InCh lIMIT # eaCh • When ordering please specify: name &
#6 32 H3 12-920-300 $107.64 hardness of material being used
8 32 H3 12-920-305 116.51
10 32 H3 12-920-310 121.48 APPLiCAtiOns:
1/4" 20 H3 12-920-315 146.13 • Carbide taps work best in plastics, powdered metals,
1/4 28 H3 12-920-320 147.51 24 hour faCTory ShIPMenT on STandard laminated materials, fiberglass, aluminum, zinc die cast,
5/16 18 H3 12-920-325 173.87 and SPeCIal SIzeS! beryllium, cast iron, brass, bakelite, stellite, teflon, etc.
5/16 24 H3 12-920-330 187.38 • Call for sizes from #6-5/8" up to 48 TPI.
3/8 16 H3 12-920-335 219.77 • Metric sizes from 3.5mm to 16mm. feAtures:
3/8 24 H3 12-920-340 224.01 • Hand taps available right or left hand. †Ships direct from factory.
